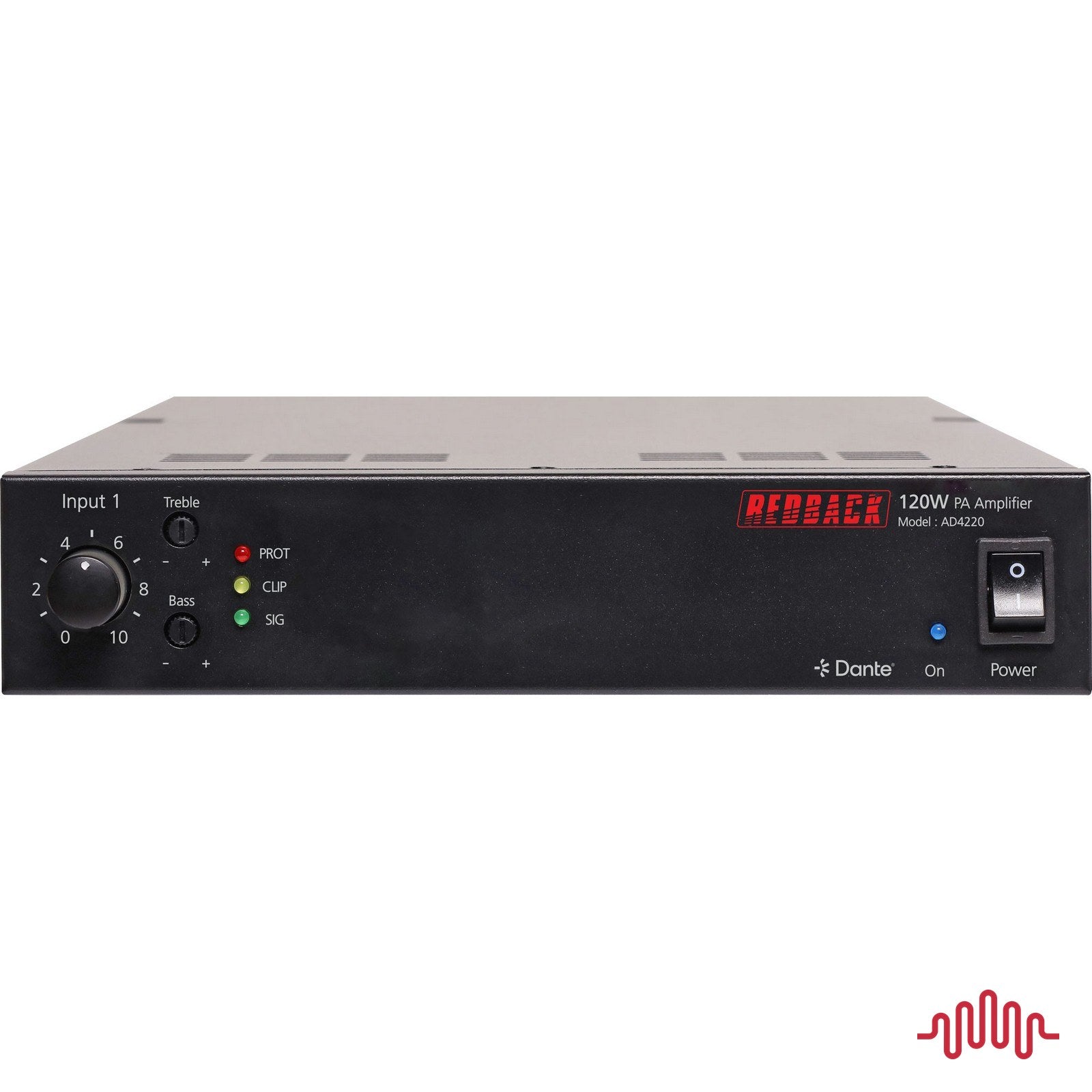

Redback AD4220 120W Dante half rack PA zone amplifier front panel

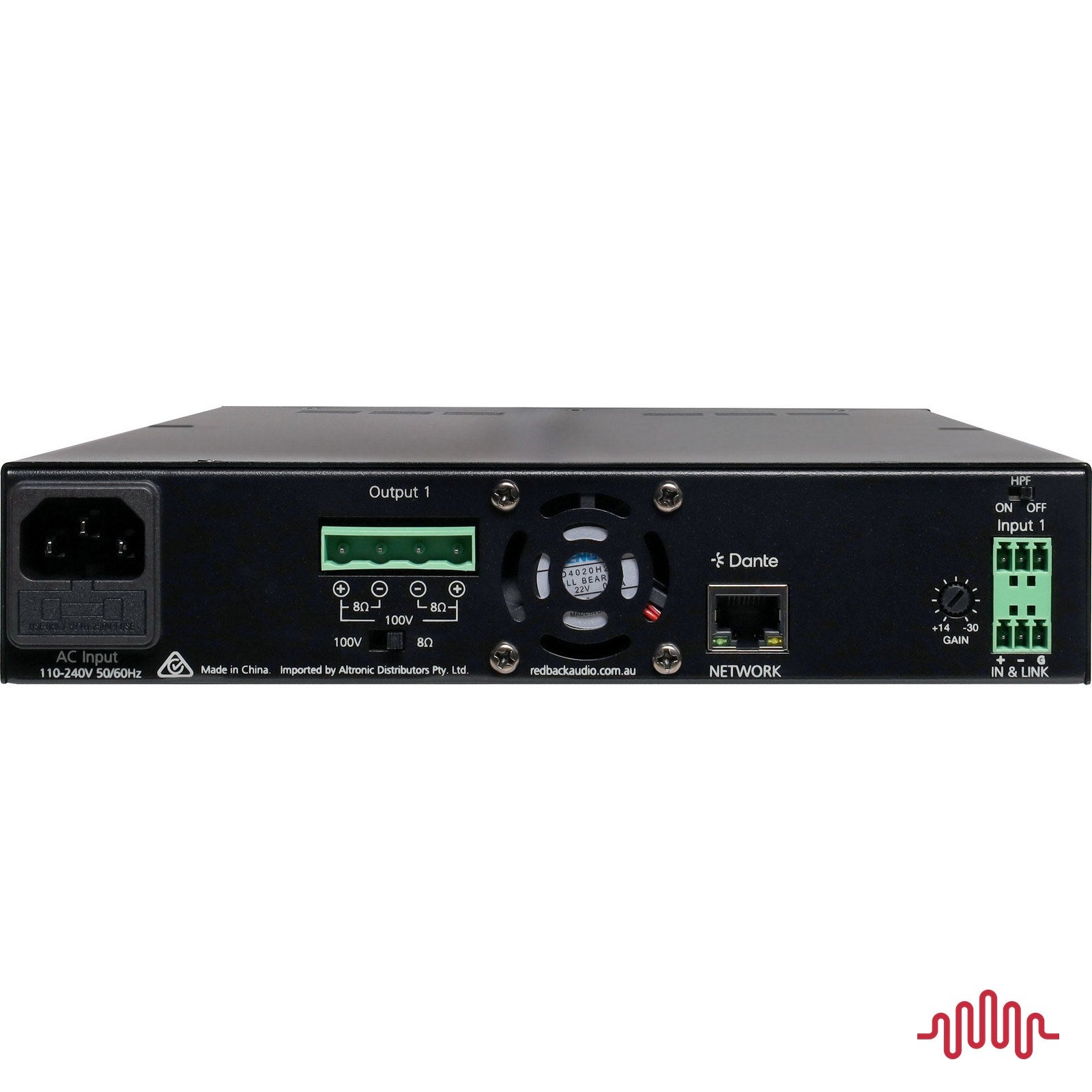

Redback AD4220 120W Dante half rack PA zone amplifier rear panel connections
Redback AD4220 120W Dante half rack PA zone amplifier front panel
Redback AD4220 120W Dante half rack PA zone amplifier rear panel connections

Redback

Redback 120W Dante Half Rack PA Zone Amplifier (AD4220)

$990.00
Quantity

AD4220

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Ask a question

Part of the Redback modular 'half rack' zone amplifier series with Dante® connectivity, allowing flexible routing and distribution of audio over IP across a commercial PA installation. Mix and match zone amplifiers within 1RU of 19in rack space.

Class-D design with excellent power efficiency. Front panel adjustment per channel plus bass and treble control, with individual protection, clipping and signal presence indicators. Outputs via pluggable euroblock connectors with 100V line and 8Ω available. Inputs via balanced euroblock terminals and Dante UTP ethernet (Dante mutes the euroblock input). A high pass filter switch can be activated on each channel.

Redback 120W Dante Half Rack PA Zone Amplifier (AD4220)

$990.00
Features
  • Dante connectivity via UTP ethernet
  • Modular half-rack design — mix and match amps within 1RU
  • Class-D design, high efficiency
  • 100V line or 8 ohm output via euroblock terminals
  • LED indicators for protection, clipping and signal presence
  • Short circuit, overload & high temperature protection
  • 2 year warranty
Specifications
  • Rated power (100V) : 120W
  • Rated power (8 ohm) : 2 x 60W
  • Amplifier class : Class-D
  • Dante : Yes — UTP ethernet port (Dante signal mutes euroblock input)
  • Inputs : Balanced 3-pin euroblock + Dante UTP
  • Speaker output : 100V / 8 ohm (pluggable euroblock)
  • Input sensitivity : 0dBu / 10K ohm unbalanced/balanced
  • Output channels : 1 channel
  • Tone control : Bass 100Hz (+/-10dB), Treble 10kHz (+/-10dB)
  • High pass filter : Switchable per channel
  • Frequency response : 80Hz - 17kHz (+1dB / -3dB)
  • S/N ratio : >80dB (A-weighted)
  • THD : <1% (rated power, 1kHz)
  • Power supply : AC 110-240V 50/60Hz
  • Power consumption : 195W
  • Working temp : 0 to +40 deg C
  • Product size : 215 x 44 x 360mm (half 19in rack)
  • Unit weight : 3.3kg
  • Warranty : 2 years

*Specifications are subject to change without notice.
