Redback 150W 100V/Stereo Dante PA Amplifier (A4226)

$1,100.00
Quantity

A4226

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Ask a question

Compact half-rack amplifier with native Dante® connectivity — the latest technology for digital-ready PA systems, with the flexibility of 150W 100V line or 2 x 75W stereo operation (plus bridging if needed). Full control over the network via a standard web GUI makes it equally at home in small installs or large-scale IP-based PA systems.

A built-in DSP handles signal processing, and an RS-232 interface integrates with control systems. Class-D efficiency keeps it cool and compact.

Redback 150W 100V/Stereo Dante PA Amplifier (A4226)

$1,100.00
Features
  • Dante® 2-channel digital audio plus balanced/unbalanced analog I/O
  • Flexible output: 150W @ 100V line, 2 x 75W stereo, or bridged
  • Full control via web GUI, LAN and RS-232
  • Built-in DSP processor
  • Compact half-rack Class-D design
  • 2 year warranty
Specifications
  • Inputs : 2 x Dante® network audio, 2 x line balanced/unbalanced stereo 2Vrms
  • Outputs : 2 x Dante® network audio, 1 x 70V/100V speaker, 2 x line out
  • Output power : 2 x 75W @ 4-8 ohm; 1 x 150W @ 8/16 ohm; 1 x 150W @ 70V/100V
  • Amplifier class : Class-D
  • Frequency response : 20Hz - 20kHz +/-1dB
  • S/N ratio : 87dB (20Hz - 10kHz)
  • THD+N : 0.04% @ 1kHz/1W
  • Control : RS-232, LAN, Web GUI, Dante®

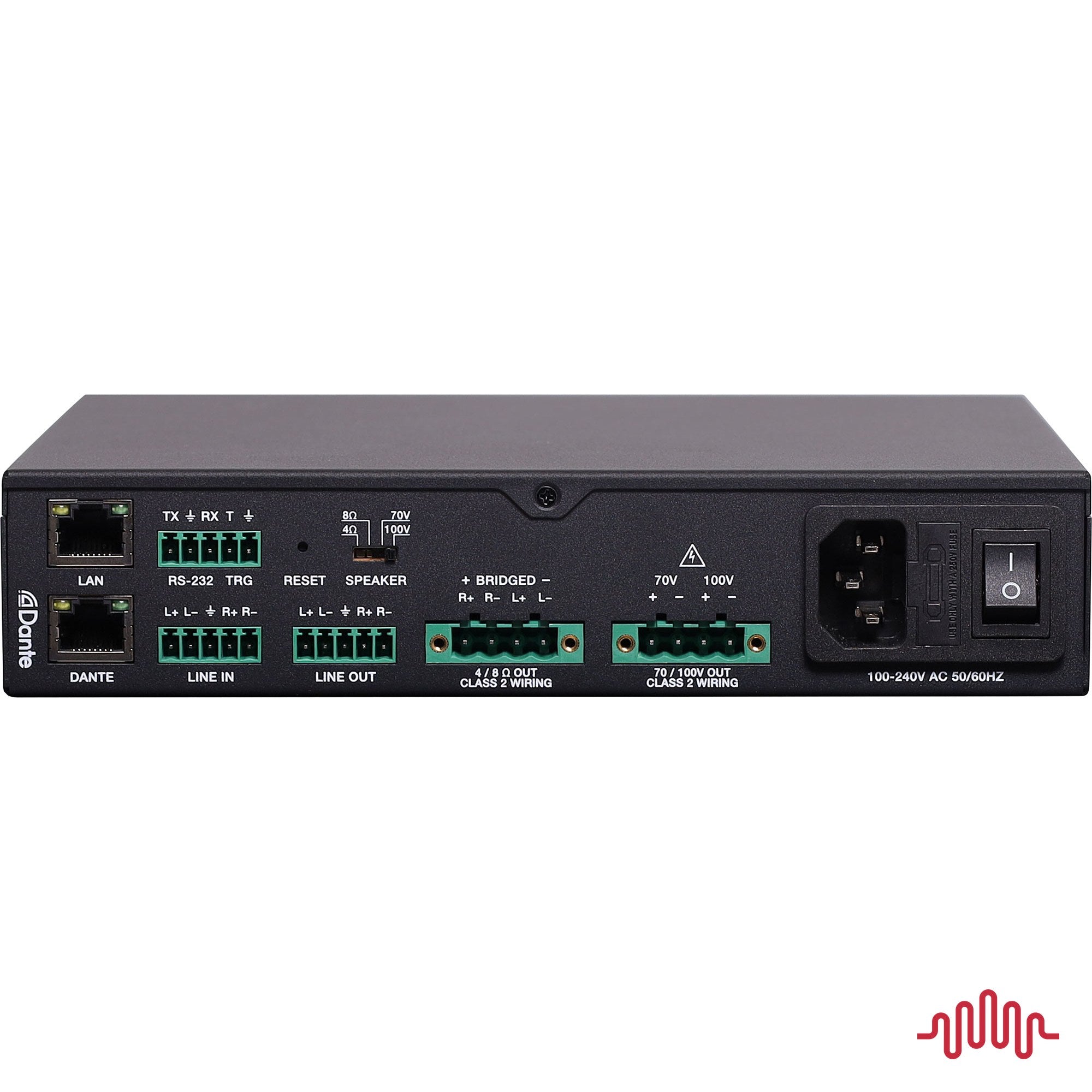

  • Connections : RJ45 Dante, phoenix line in/out, phoenix speaker outputs, RS-232/trigger, LAN
  • Dimensions : 240W x 210D x 44Hmm (half 19″ rack)
  • Unit weight : 1.88kg
  • Power supply : 100-240V AC 50/60Hz, 70W
  • Operating temperature : 0-40 deg C
  • Warranty : 2 years

*Specifications are subject to change without notice.
