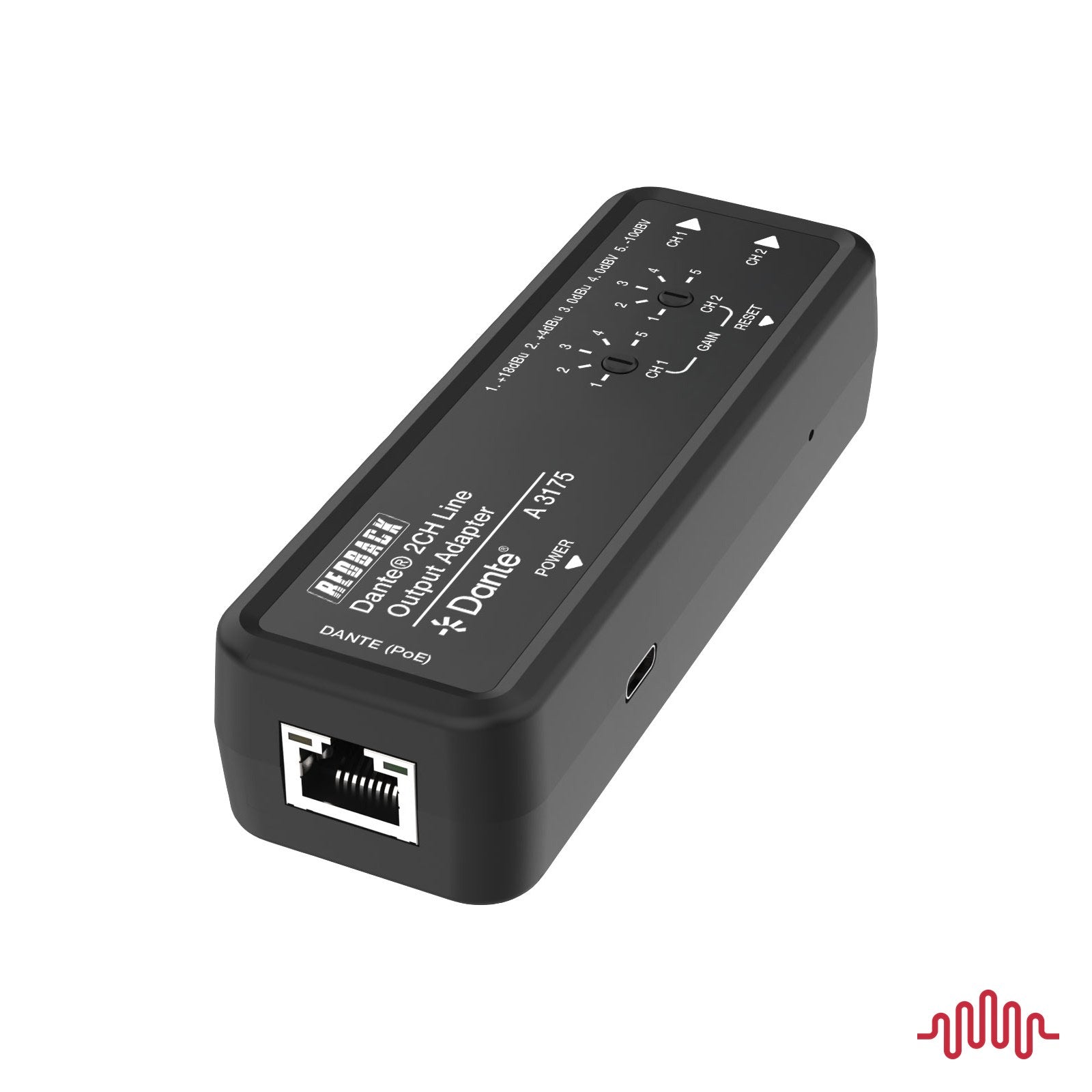

Redback 2Ch Line Output to Dante Input Adapter (A3175)

$259.00
Quantity

A3175

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Ask a question

Audio converter built on the Dante® Ultimo 2x2 solution: takes two channels of Dante® digital audio off the network and outputs balanced or unbalanced analog audio via screw terminals. Rugged metal enclosure, powered from USB-C or directly over PoE — a clean way to feed amplifiers and processors from the audio network.

Redback 2Ch Line Output to Dante Input Adapter (A3175)

$259.00
Features
  • Converts Dante® 2CH digital audio to 2ch analog audio (screw terminal)
  • Sampling up to 96kHz @ 24bit, configurable 1/2/5ms latency
  • Max output +18dBu balanced
  • AES67 compatible
  • USB-C or PoE (802.3af) powered
  • Rugged metal enclosure
Specifications
  • Input : Dante® 2CH digital audio (RJ45, PoE)

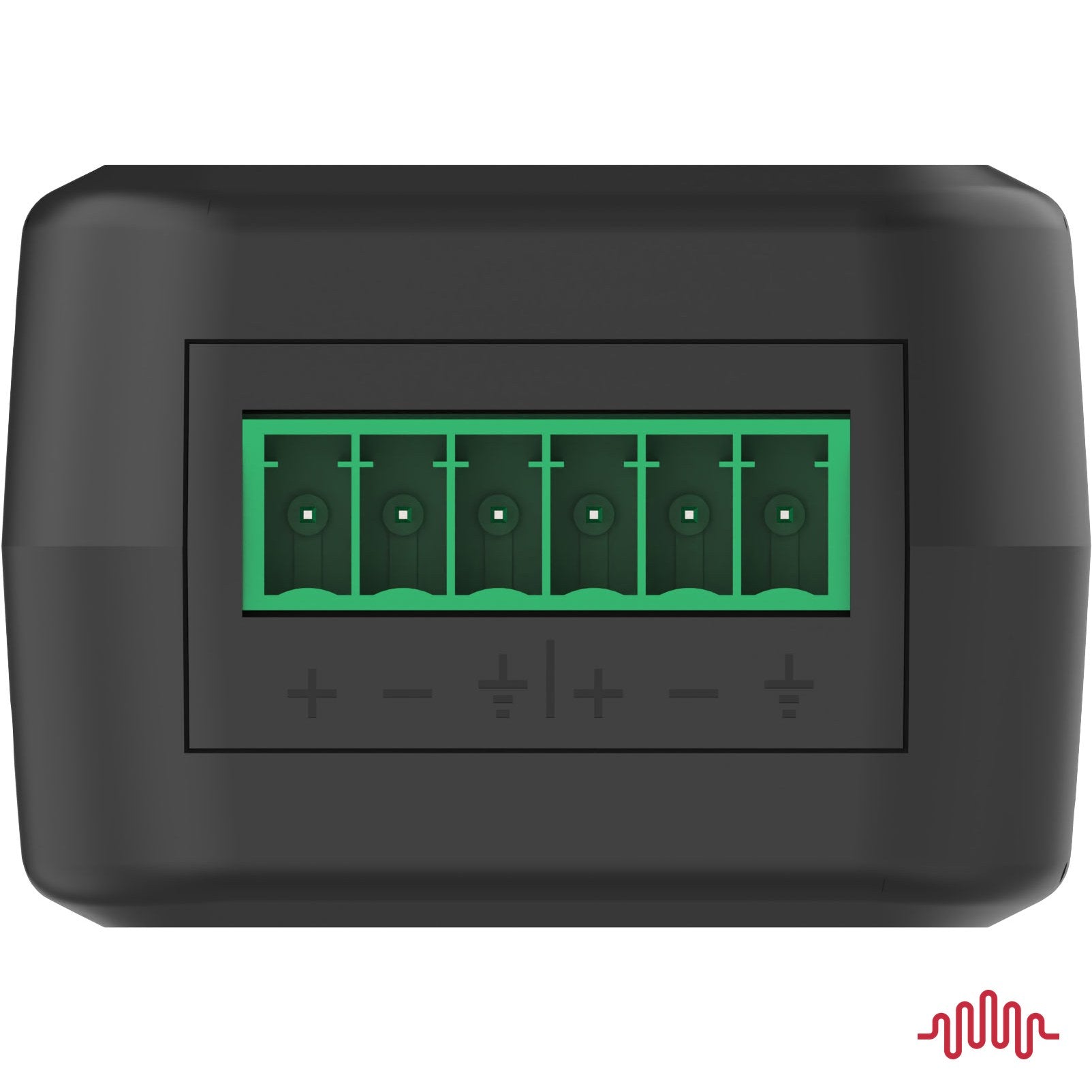

  • Output : 2ch balanced/unbalanced analog audio (6-pin 3.5mm phoenix)
  • Sampling : 44.1/48/88.2/96kHz @ 24bit
  • Latency : 1/2/5ms configurable
  • Max output level : +18dBu balanced
  • Frequency response : 20Hz - 20kHz +/-0.5dB
  • Dynamic range : >100dB
  • THD+N : <0.01% @ +4dBu 1kHz
  • Transmission distance : 100m (CAT6/6A/7)
  • Power : USB-C 5V/500mA or PoE 802.3af Class 0
  • Housing : Metal enclosure
  • Dimensions : 115W x 40D x 28Hmm
  • Weight : 94g
  • Warranty : 12 months

*Specifications are subject to change without notice.
