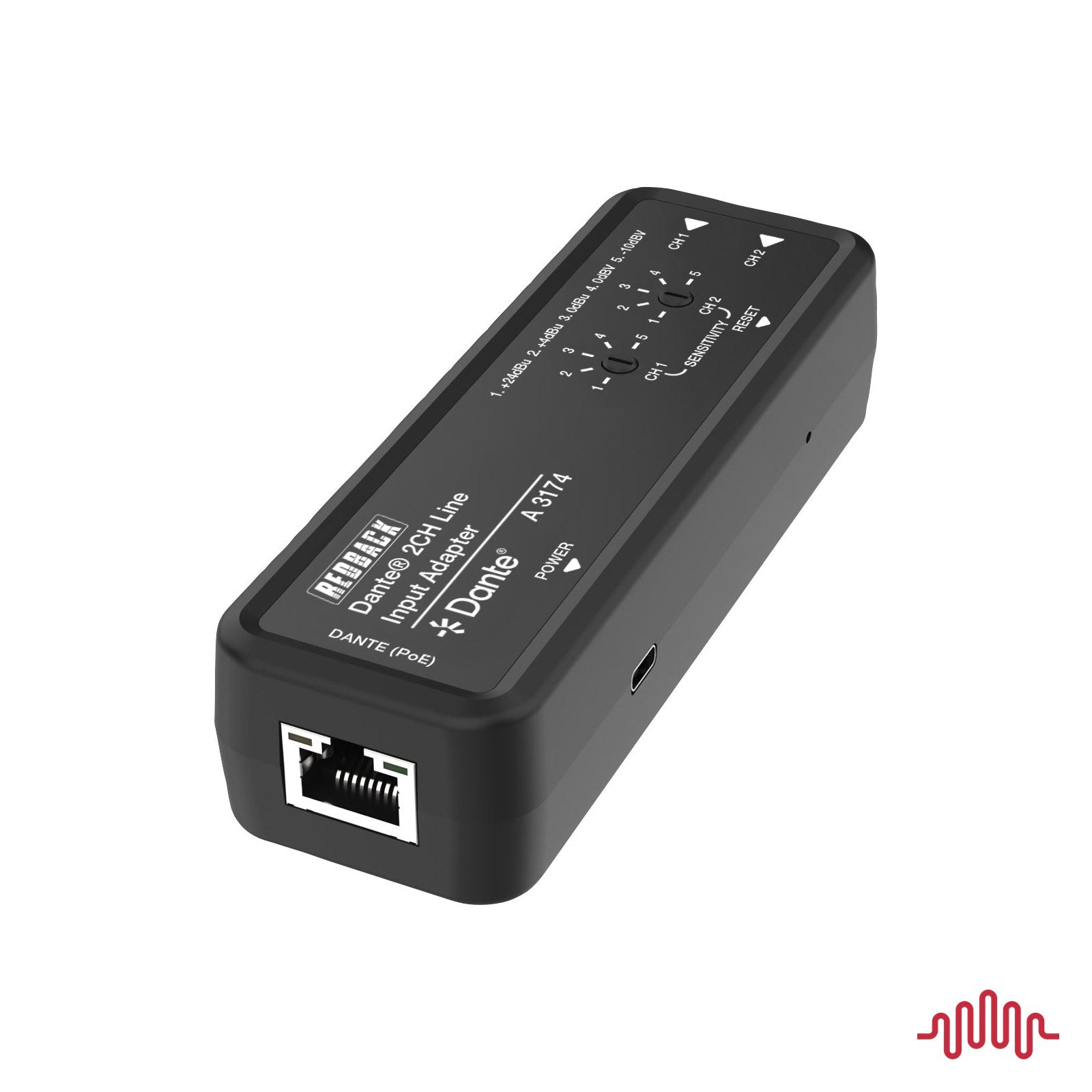

Redback A3174 2 channel line input to Dante output adapter
Redback A3174 line to Dante adapter — additional view
Redback A3174 2 channel line input to Dante output adapter
Redback A3174 line to Dante adapter — additional view

Redback

Redback 2Ch Line Input to Dante Output Adapter (A3174)

$269.00
Quantity

A3174

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Ask a question

Audio transmitter built on the Dante® Ultimo 2x2 solution: converts two channels of balanced or unbalanced analog audio — connected via screw terminals — into Dante® digital audio for transmission across the network. Five-level input sensitivity adjustment, rugged metal enclosure, powered from USB-C or directly over PoE.

Redback 2Ch Line Input to Dante Output Adapter (A3174)

$269.00
Features
  • Converts 2ch analog audio (screw terminal) to Dante® digital audio
  • Sampling up to 96kHz @ 24bit, configurable 1/2/5ms latency
  • 5-level input sensitivity adjustment (+24dBu to -10dBv)
  • AES67 compatible
  • USB-C or PoE (802.3af) powered
  • Rugged metal enclosure
Specifications

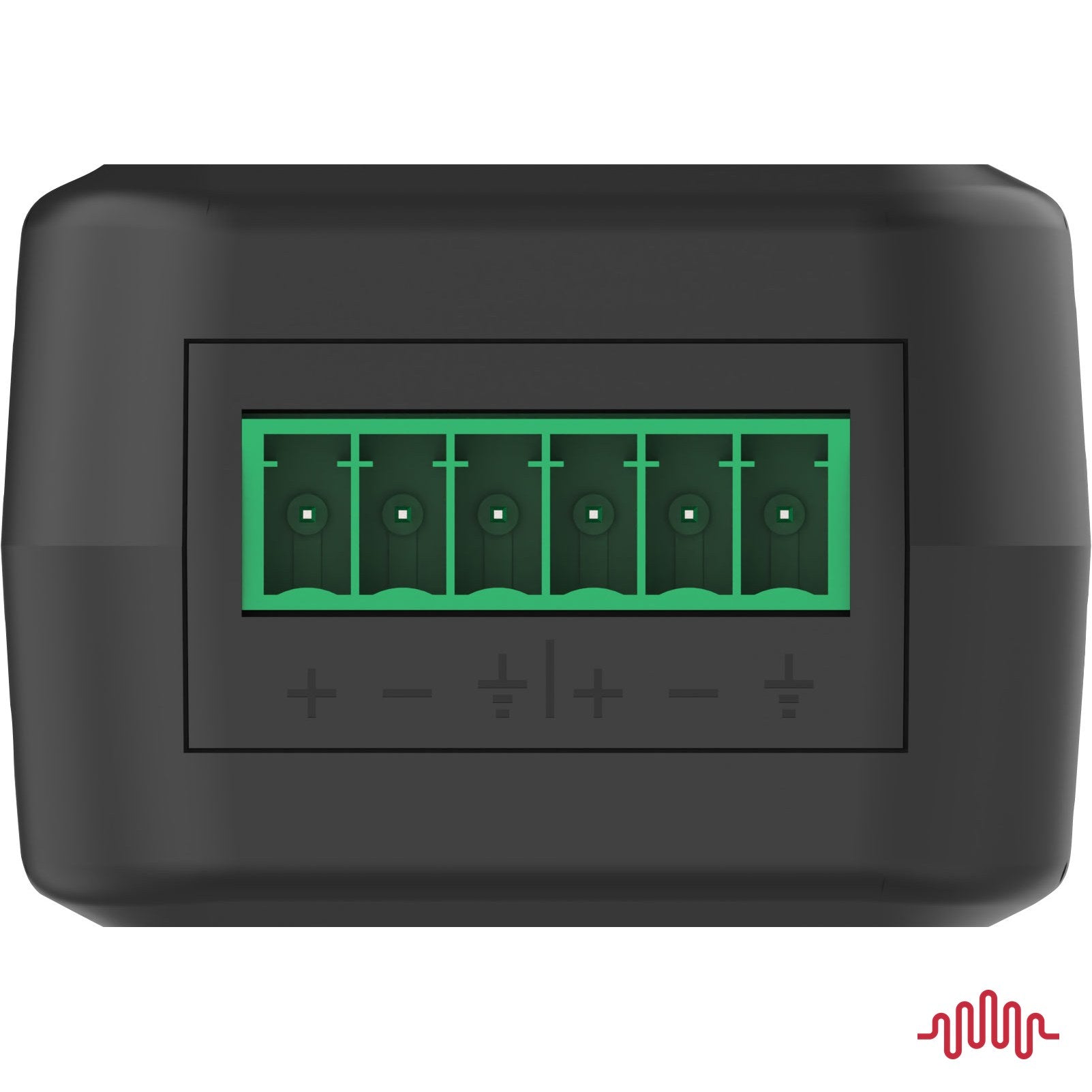

  • Input : 2ch balanced/unbalanced analog audio (6-pin 3.5mm phoenix)
  • Output : Dante® 2CH digital audio (RJ45, PoE)
  • Sampling : 44.1/48/88.2/96kHz @ 24bit
  • Latency : 1/2/5ms configurable
  • Input sensitivity : 5-level (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
  • Max input level : +24dBu balanced
  • Frequency response : 20Hz - 20kHz +/-0.5dB
  • Dynamic range : >100dB
  • THD+N : <0.01% @ +4dBu 1kHz
  • Transmission distance : 100m (CAT6/6A/7)
  • Power : USB-C 5V/500mA or PoE 802.3af Class 0
  • Housing : Metal enclosure
  • Dimensions : 115W x 40D x 28Hmm
  • Weight : 94g
  • Warranty : 12 months

*Specifications are subject to change without notice.
