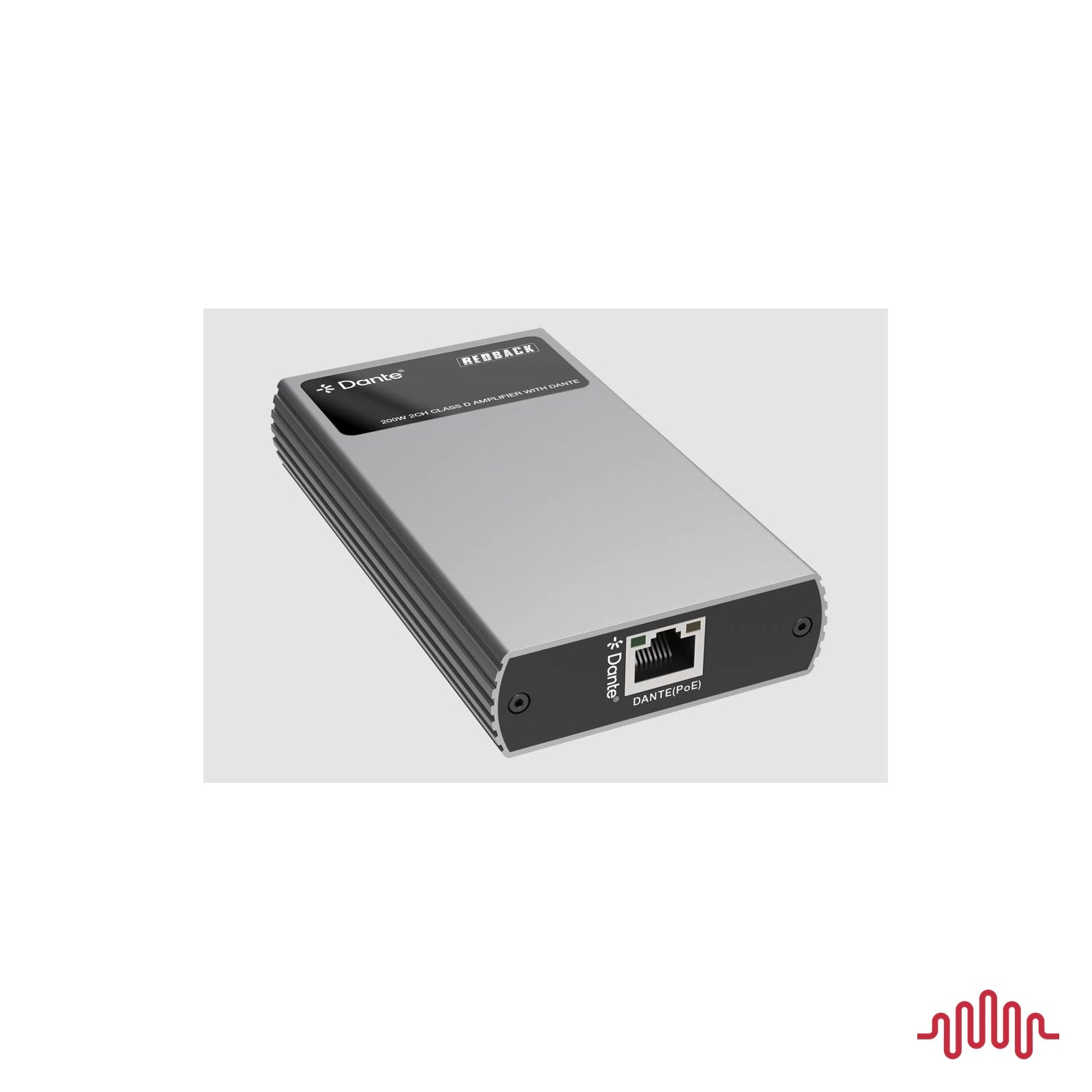

Redback A3169 compact Dante PA amplifier module

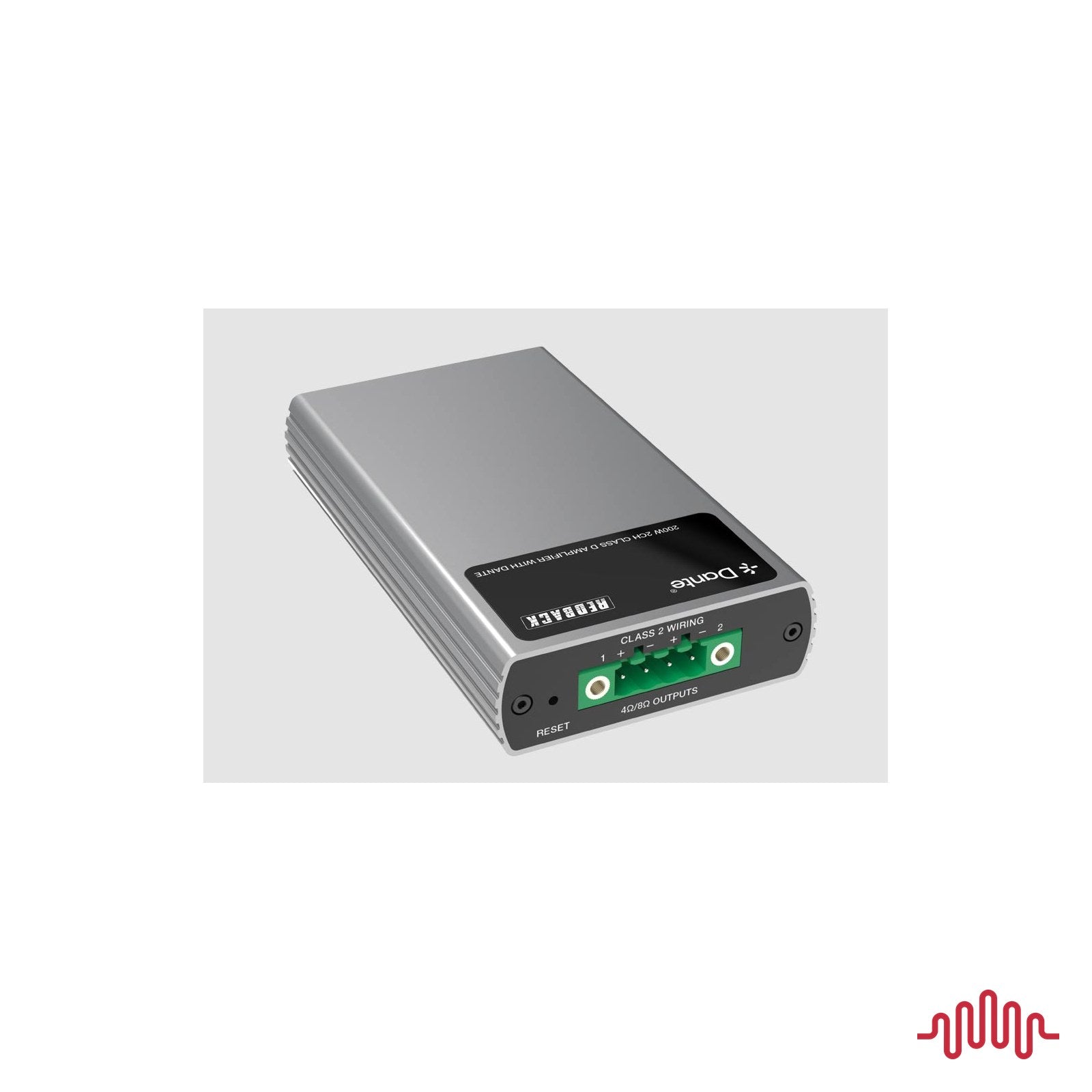

Redback A3169 Dante amplifier module — additional view
Redback A3169 compact Dante PA amplifier module
Redback A3169 Dante amplifier module — additional view

Redback

Redback Compact PA Amplifier Module with Dante (A3169)

$675.00
Quantity

A3169

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Ask a question

This advanced PA amplifier module with built-in Dante® integration lets installers connect and control loudspeakers over IP networks. Small enough to sit in the ceiling space beside the connected speaker — or fasten to the rear of a speaker backbox with the included mounting flanges — it turns any low-impedance speaker into a Dante®-equipped zone.

Class-D performance delivers 2 x 35W RMS into 4/8 ohms with superb efficiency and low heat. Control comes via Dante's standard software suite with DSP processing including gain, ducking, 8-band PEQ, limiter and delay — Redback's most advanced amplifier feature set, powered entirely over PoE++.

Redback Compact PA Amplifier Module with Dante (A3169)

$675.00
Features
  • Built-in Dante® 2x2 audio integration
  • 2 x 35W RMS @ 4/8 ohm (2 x 100W peak) Class-D output
  • Powered over PoE++ — single cable install
  • DSP: gain, ducking, 8-band PEQ, limiter and delay
  • Fits in ceiling space or mounts to speaker backbox
  • Over-voltage, over-current and over-temperature protection
Specifications
  • Input : 2 x Dante® network audio
  • Output : 4/8 ohm stereo speaker output
  • Output power : 2 x 35W RMS @ 4/8 ohm (peak 2 x 100W)
  • Amplifier class : Class-D
  • Frequency response : 20Hz - 20kHz +/-1dB
  • S/N ratio : 87dB (20Hz - 10kHz)
  • THD+N : 0.04% @ 1kHz/1W
  • DSP : Gain, ducking, 8-band PEQ, limiter, delay
  • Control : TCP/IP, Web GUI, Dante® Controller
  • Power : PoE++ (Power over Ethernet)

*Specifications are subject to change without notice.
