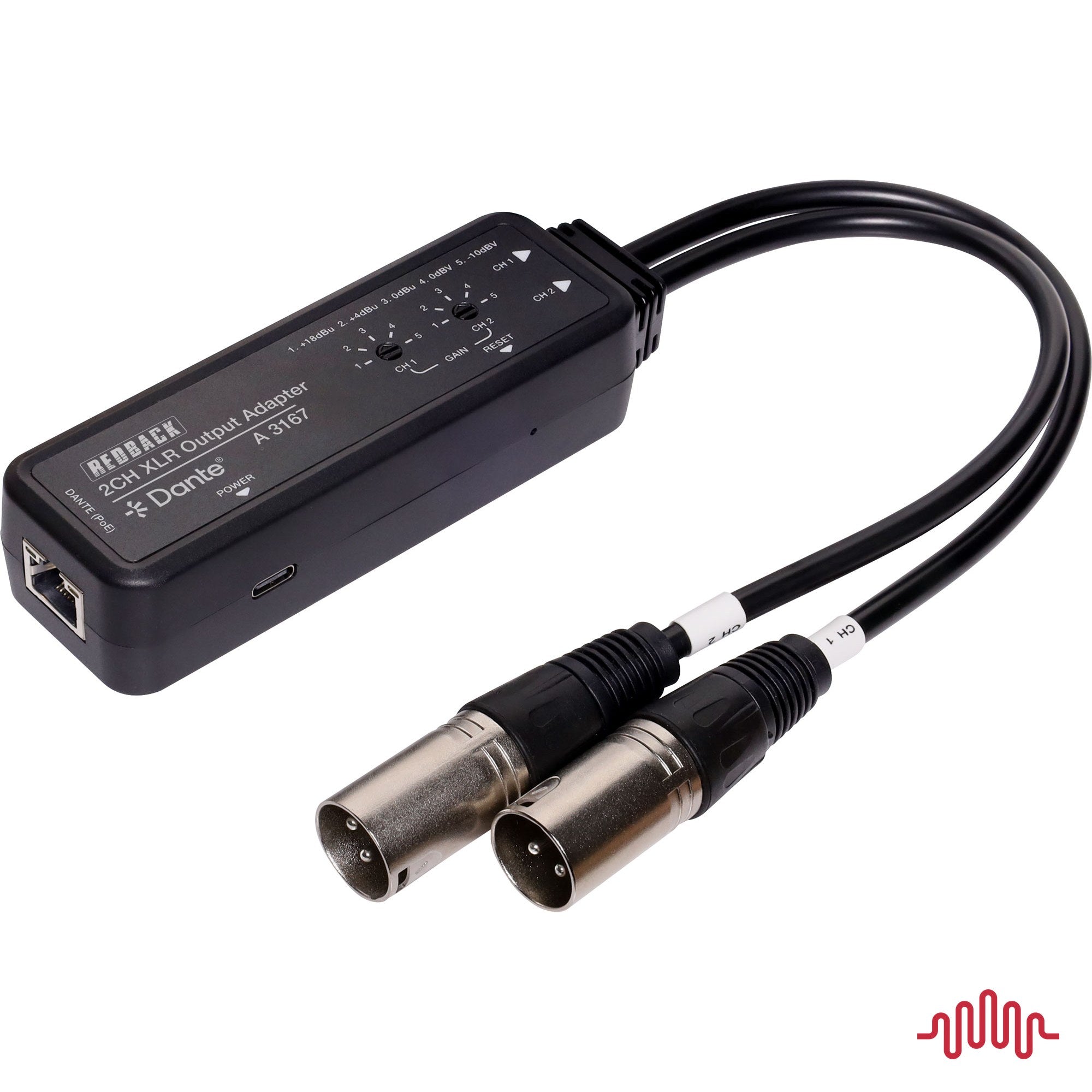

Redback A3167 2 channel XLR output to Dante input adapter

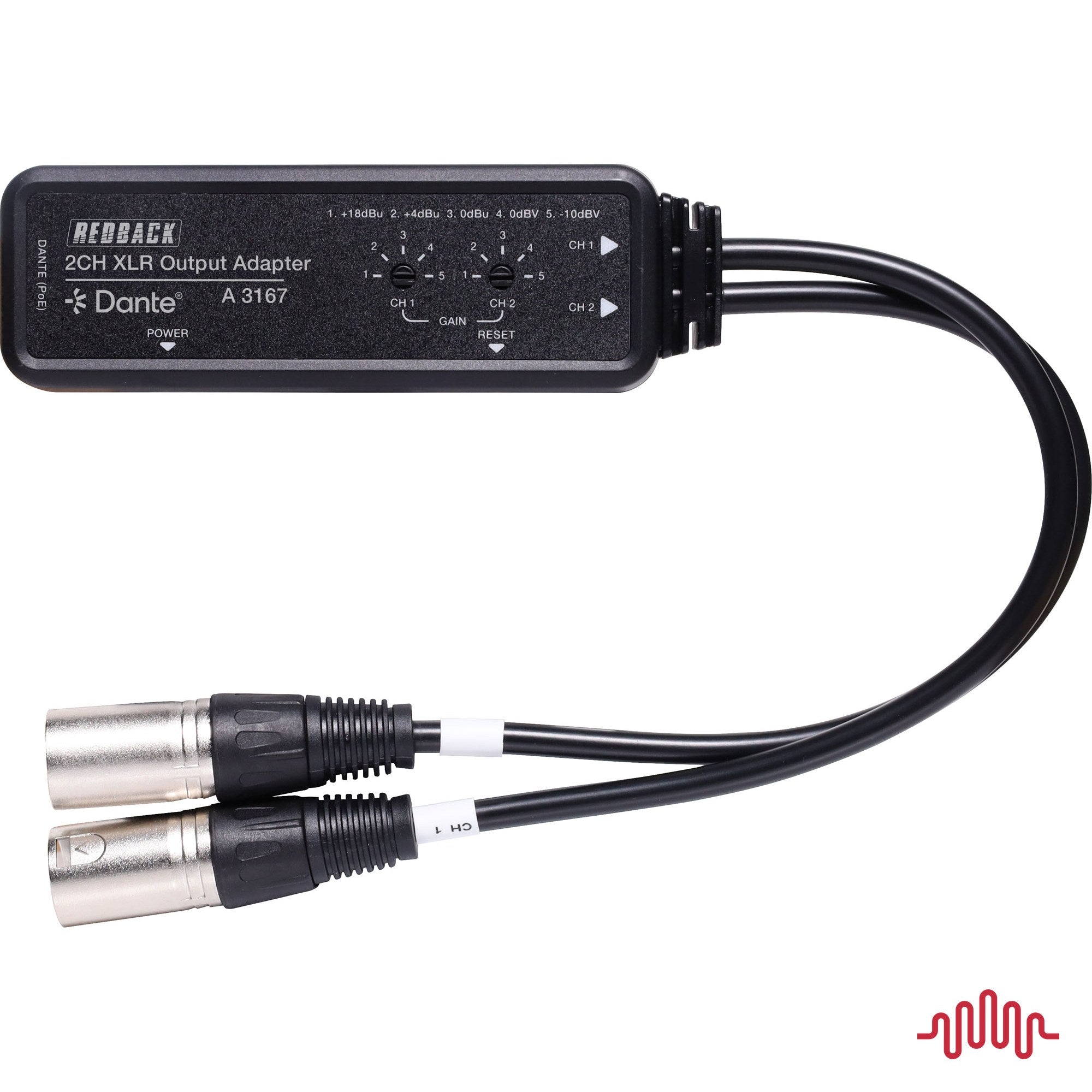

Redback A3167 Dante to XLR adapter — additional view
Redback A3167 2 channel XLR output to Dante input adapter
Redback A3167 Dante to XLR adapter — additional view

Redback

Redback 2Ch XLR Output to Dante Input Adapter (A3167)

$259.00
Quantity

A3167

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Ask a question

Audio converter built on the Dante® Ultimo 2x2 solution: takes two channels of Dante® digital audio off the network and outputs balanced or unbalanced XLR analog audio. Five-level output gain adjustment matches any destination, powered from USB-C or directly over PoE.

Redback 2Ch XLR Output to Dante Input Adapter (A3167)

$259.00
Features
  • Converts Dante® 2CH digital audio to 2ch XLR analog audio
  • Sampling up to 96kHz @ 24bit, configurable 1/2/5ms latency
  • 5-level output gain adjustment (+18dBu to -10dBv)
  • AES67 compatible
  • USB-C or PoE (802.3af) powered
  • Compact design for flexible installation
Specifications
  • Input : Dante® 2CH digital audio (RJ45, PoE)
  • Output : 2ch balanced/unbalanced XLR analog audio (XLR male, 30cm leads)
  • Sampling : 44.1/48/88.2/96kHz @ 24bit
  • Latency : 1/2/5ms configurable
  • Output gain : 5-level (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)
  • Max output level : +18dBu balanced
  • AES67 : Compatible
  • Frequency response : 20Hz - 20kHz +/-0.5dB
  • Dynamic range : >100dB
  • THD+N : <0.01% @ +4dBu 1kHz
  • Transmission distance : 100m (CAT6/6A/7)
  • Power : USB-C 5V/500mA or PoE 802.3af Class 0
  • Dimensions : 115W x 40D x 28Hmm
  • Weight : 173g
  • Warranty : 12 months

*Specifications are subject to change without notice.
