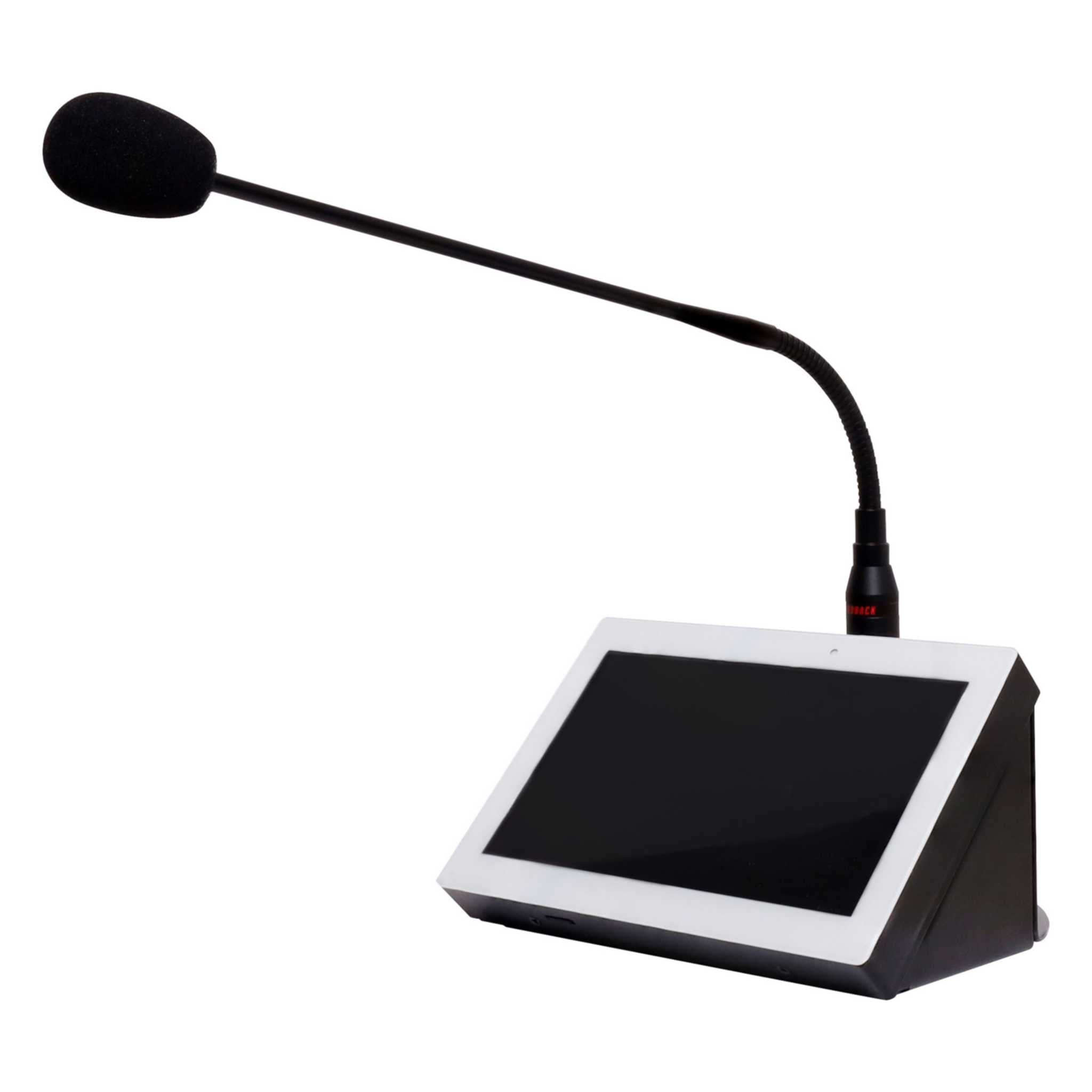

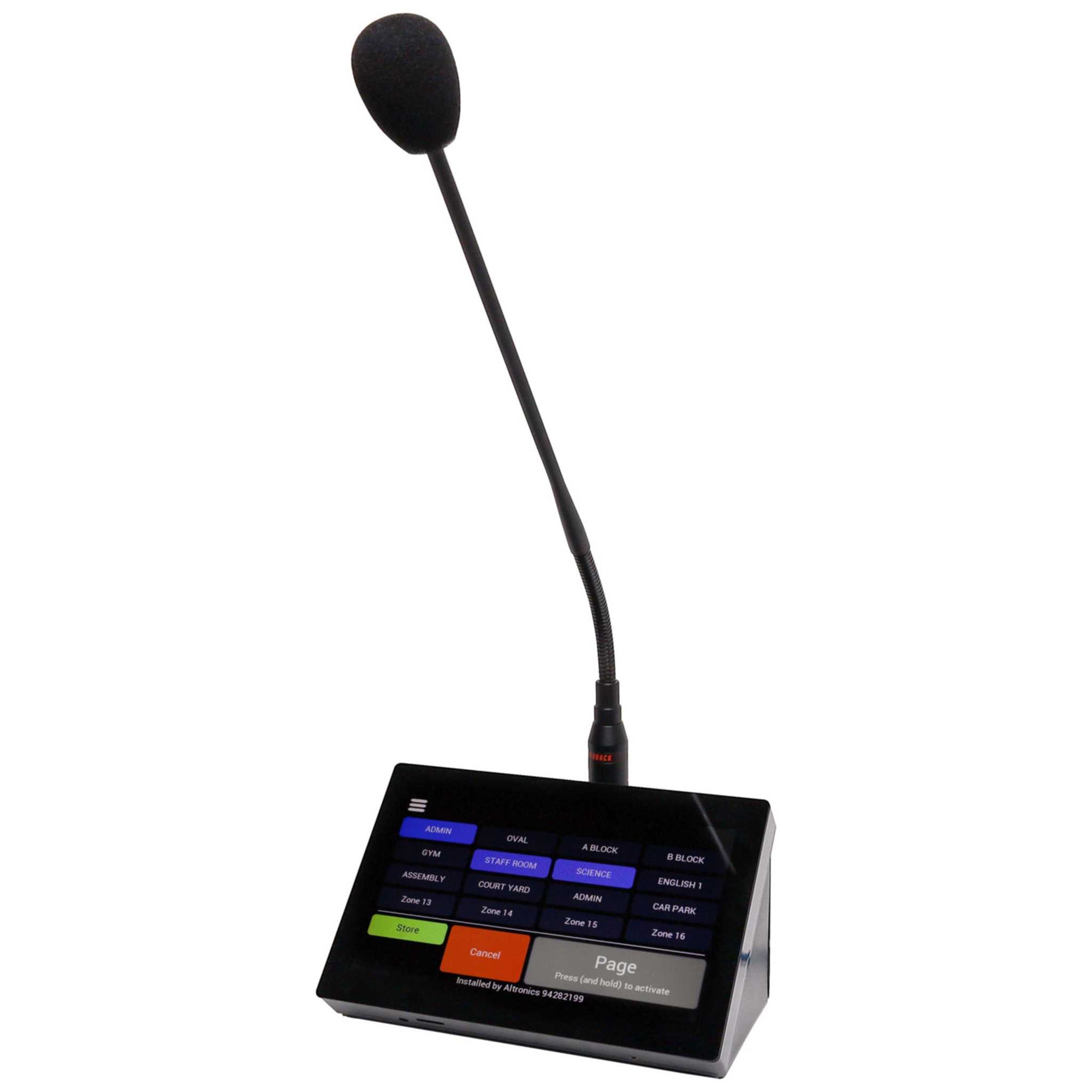

Experience seamless paging control with the Redback 7" Master Paging Console. This advanced touchscreen LCD console serves as a central hub for managing paging functions across various Redback products. It features pre and post-announcement chimes, adjustable automatic microphone gain (AGC) control, and output level control to ensure clear and efficient communication.

The console's settings menu allows customization for designated Redback products, including button colour themes, zone labelling, and input/installer renaming. Additional features include adjustable haptic button feedback, screen sleep settings, and backlighting/dimming timers. Simplify your paging operations with the ability to record and playback announcements, store and recall multi-zone selections, and enjoy a streamlined, user-friendly interface.

The features available on the console vary according to what Redback device it is connected to. Contact us for a guide.

Standard Features:

Touch control paging with pre and post announcement chime options.
Adjustable microphone automatic gain control (AGC).
High quality electret microphone with high ambient noise control and feedback rejection.
Adjustable backlight brightness and dimmed brightness levels with selectable timeout period.
All glass front bezel for a stylish finish for any room.

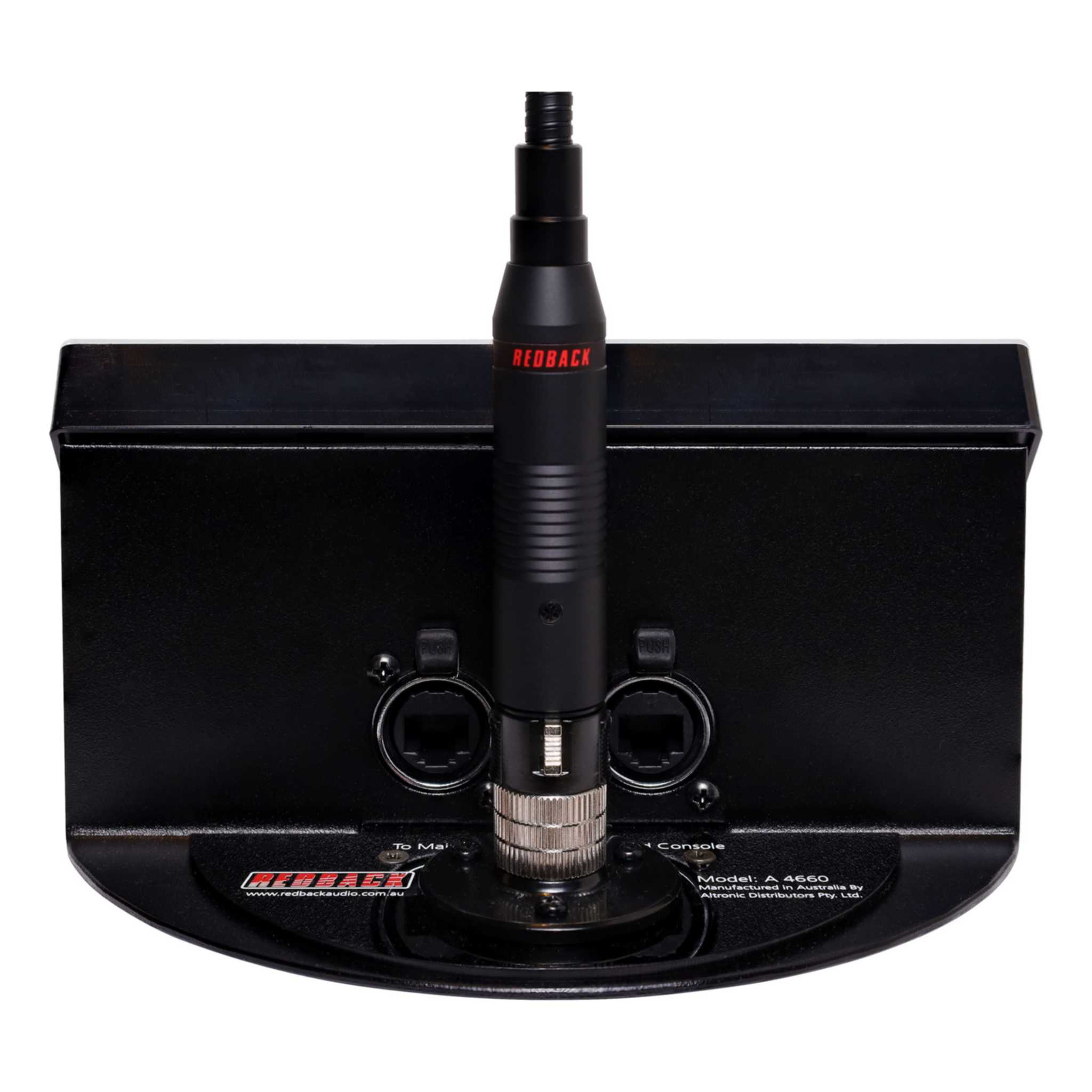

Connects via economical Cat5e UTP cabling.

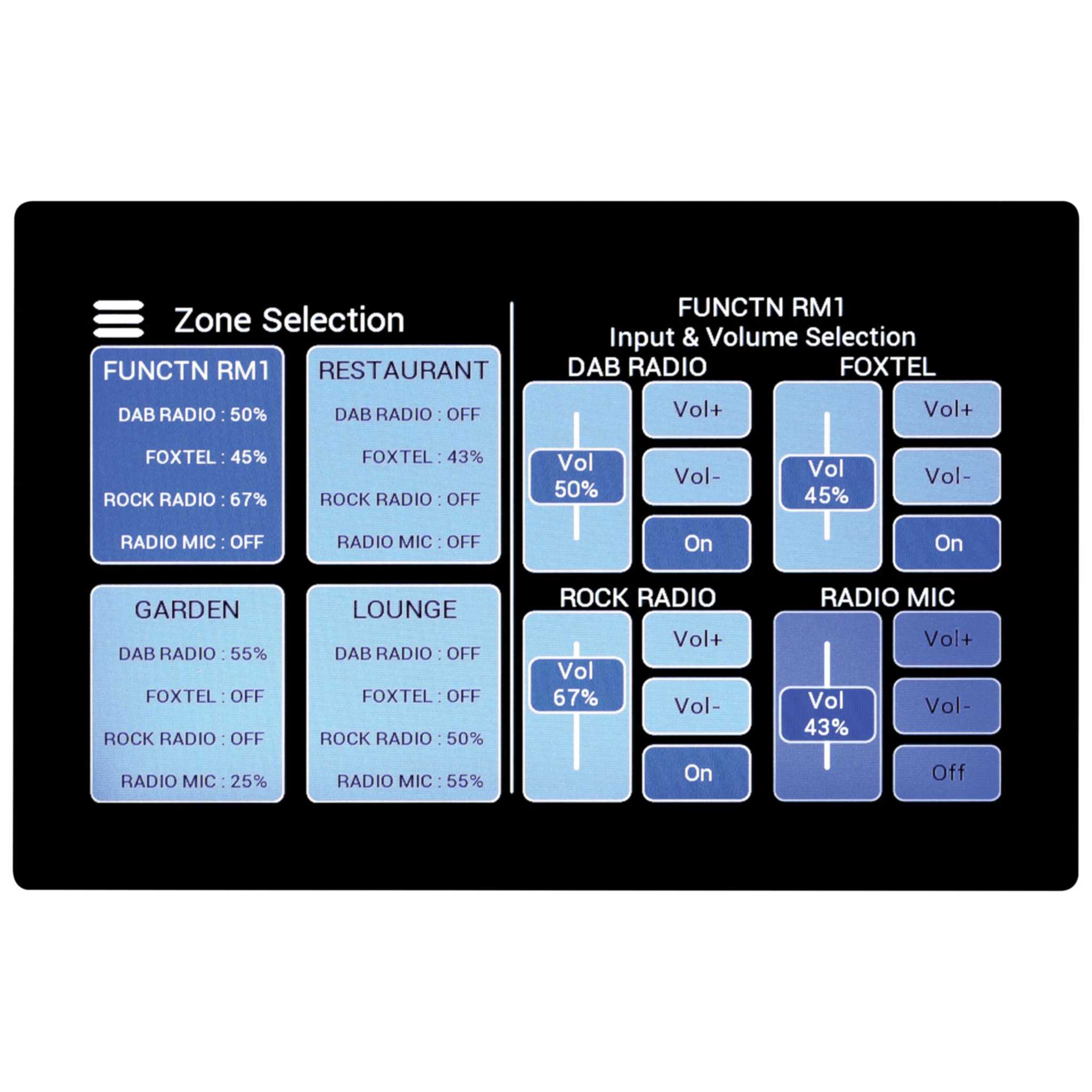

Additional Features for A4450

Touchscreen control of zone inputs and level control.
Custom labelling of zones and inputs.
Record to, or load announcements from SD card for recall and playback.
Choose button colour theme.

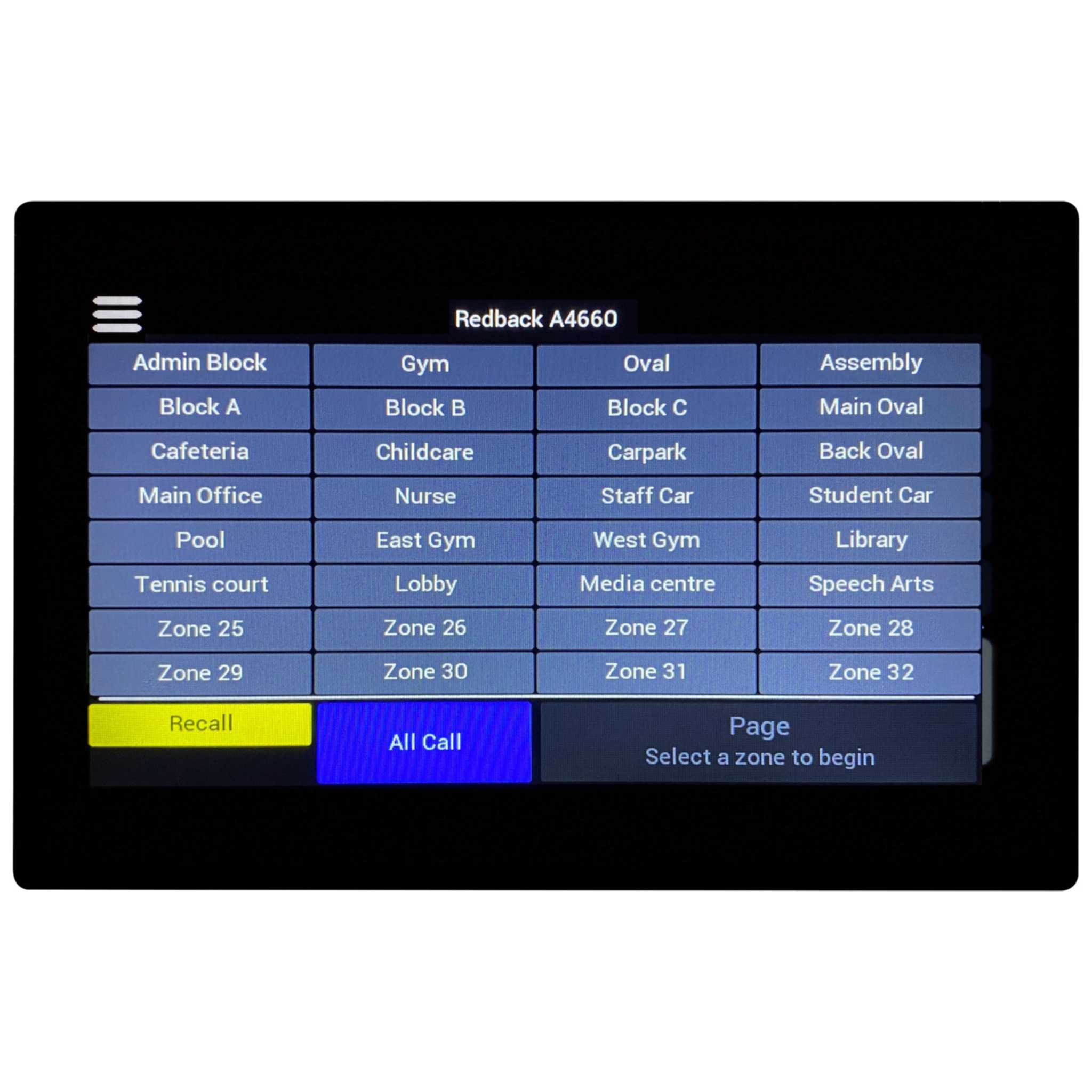

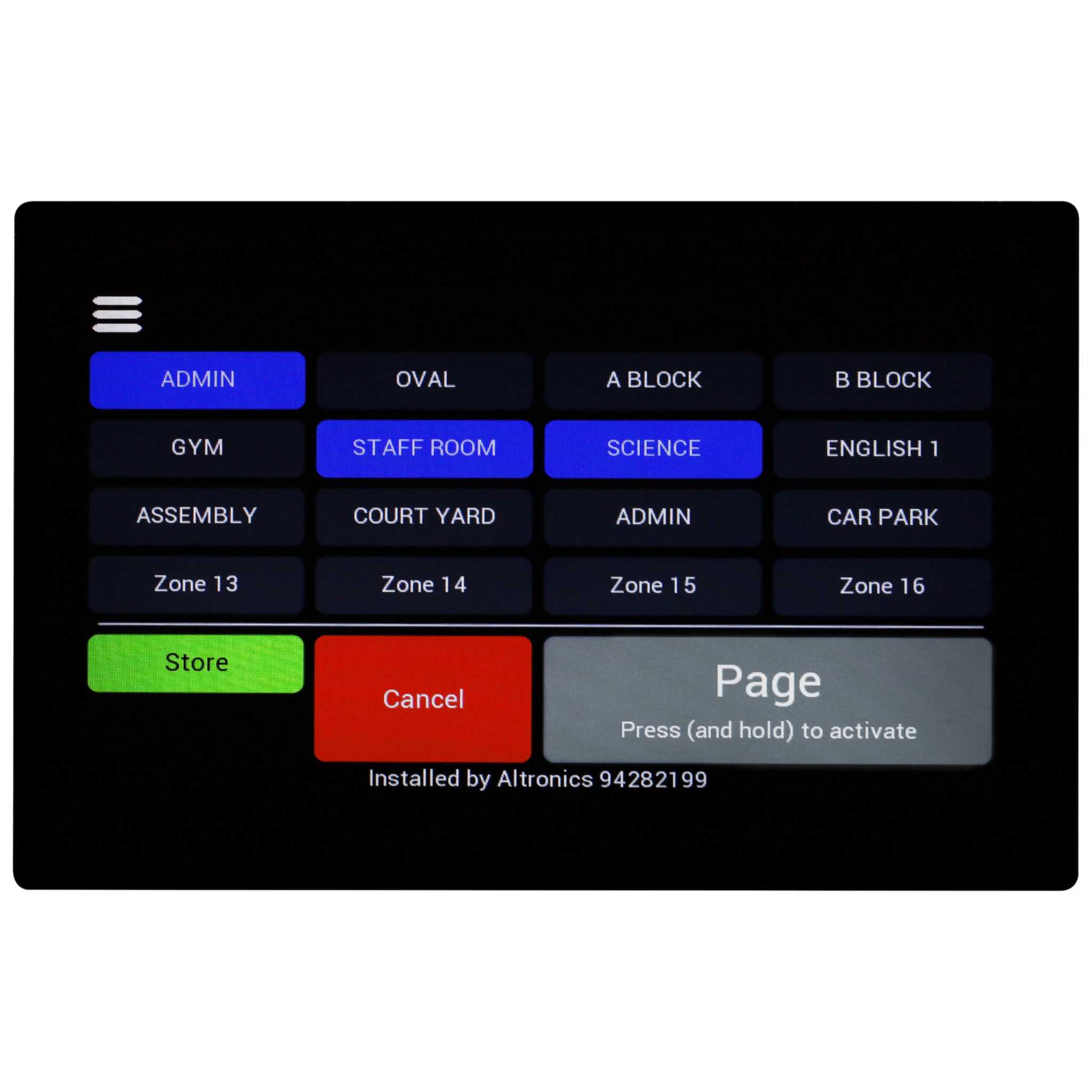

Additional Features for A4580

Simple touchscreen paging control of up to 32 zones(*).
All Call Paging.
Store multiple zones to a single button for quick paging.
Adjust custom labelling of zones and installer label.
Zone lockout feature.
PTT activation available in momentary or alternate mode

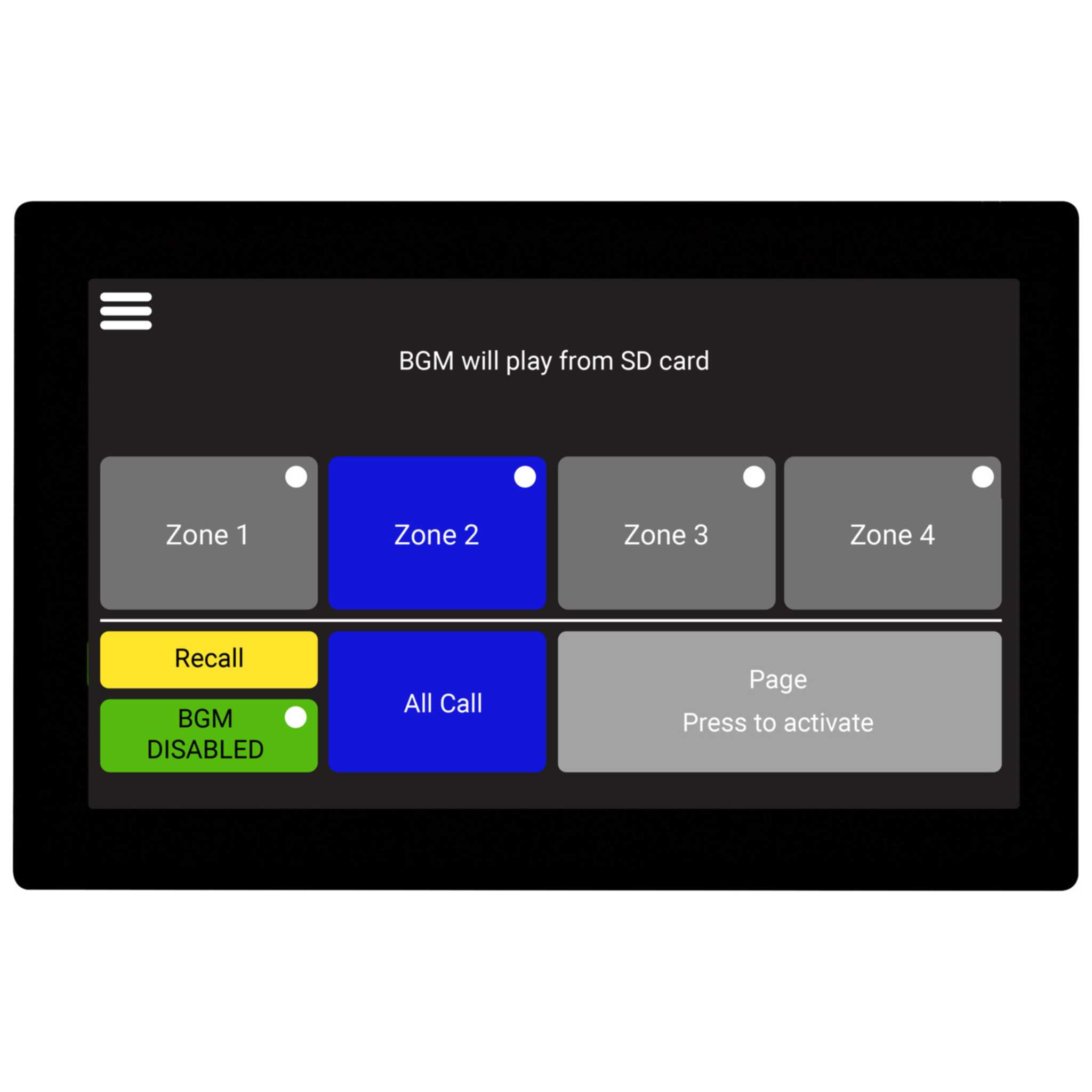

Additional Features for A4487

Simple touchscreen paging control.
User configurable installer label.
PTT activation available in momentary or alternate mode.
Multiple sources for background music.

Additional Features for A4270/80, A4469 & A4489A

Simple touchscreen paging control.
All Call Paging.
Store multiple zones to a single button for quick paging.
Adjust custom labelling of zones and installer label.
Zone lockout feature.
PTT activation available in momentary or alternate mode.
Multiple sources for zone-selectable background music.

Current Firmware Product Support
For more information on how this paging console operates with each system, see the relevant pages for the compatible Redback products listed below.

This product is currently under ongoing development and we are adding compatible products regularly. The following table displays the products which are currently compatible with the A4660 paging console, and those which are proposed for future firmware updates.

Compatible Redback Products:

A 4450 4x4 Audio Source Matrix Mixer Switch
A 4580 16 Zone Paging System Switch Box
A 4580 32 Zone Paging System Switch Box (*with addition of second A4580)
A 4585 Line Level/Speaker Level Paging System Switch Box
A 4270 Public Address (PA) Mixer Amplifier 125W 100V 4 Zone
A 4280 Public Address (PA) Mixer Amplifier 250W 100V 4 Zone
A 4469 4 Zone Compact Paging Relay Box To Suit A4488
A 4489A 4 Zone Paging Relay Box To Suit A4488
A 4500C 24 Hour 7 Day Timer With Evac Tone Generator
A 4505C 7 Day Timer With Lockdown & Fire Alarm Control
A 4565B Building Emergency Alert/Evacuation Controller
A 4595A School Lockdown Controller
A 4480B 8 Input To 8 Output Audio Switcher

Compatible Superseded Redback Products:

A 4565 Building Emergency Alert & Evacuation Controller
A 4565A Building Emergency Alert & Evacuation Controller
A 4500B 50 Event 24 Hour 7 Day Timer With Evac Tone Generator
A 4480A 8 Input To 8 Output Audio Switcher
