The Redback A 4395A is a powerful 500 Watt mixer amplifier designed for installations that require a high-power zone amplifier. It is ideal for shopping centers, pedestrian precincts, public transport facilities, and convention centers.

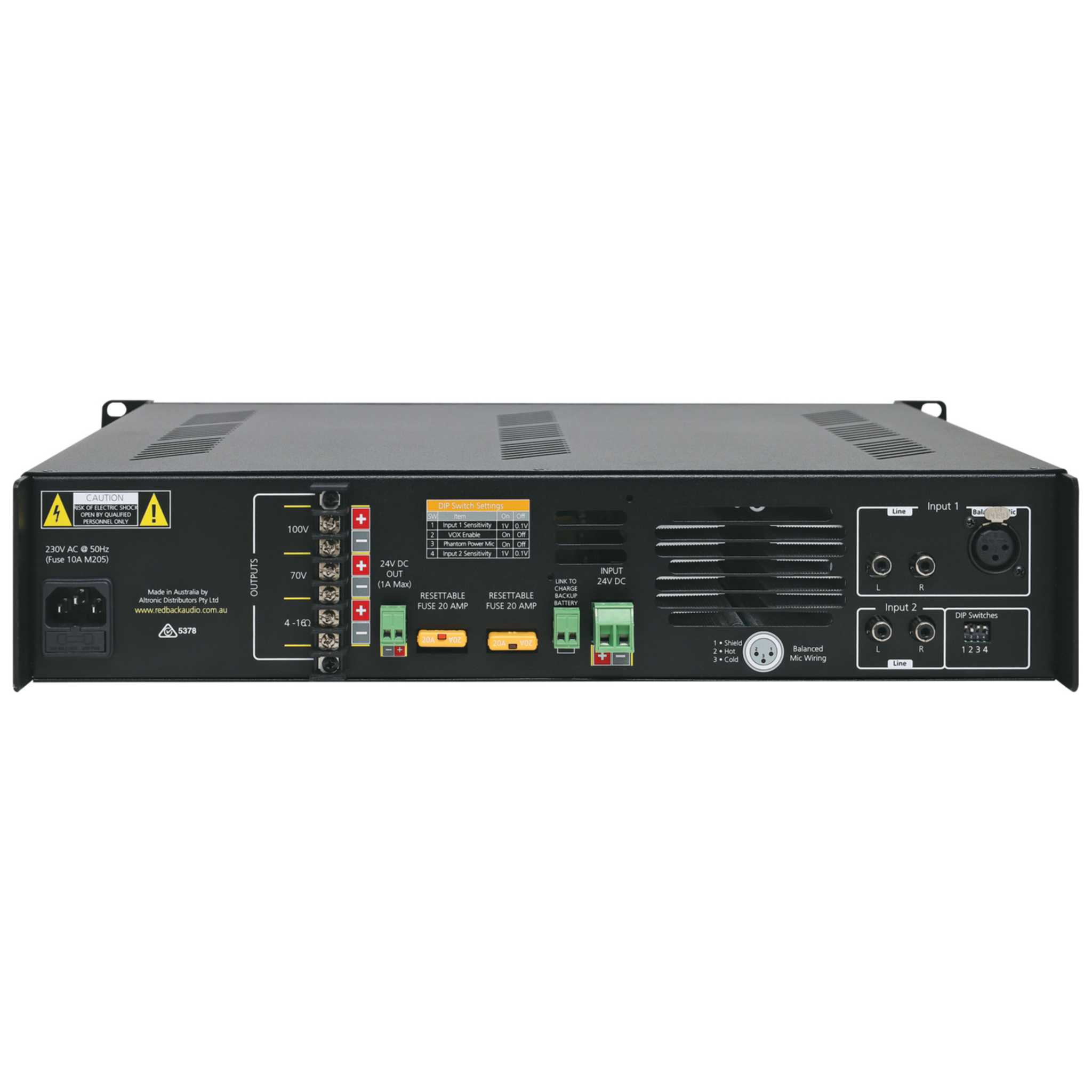

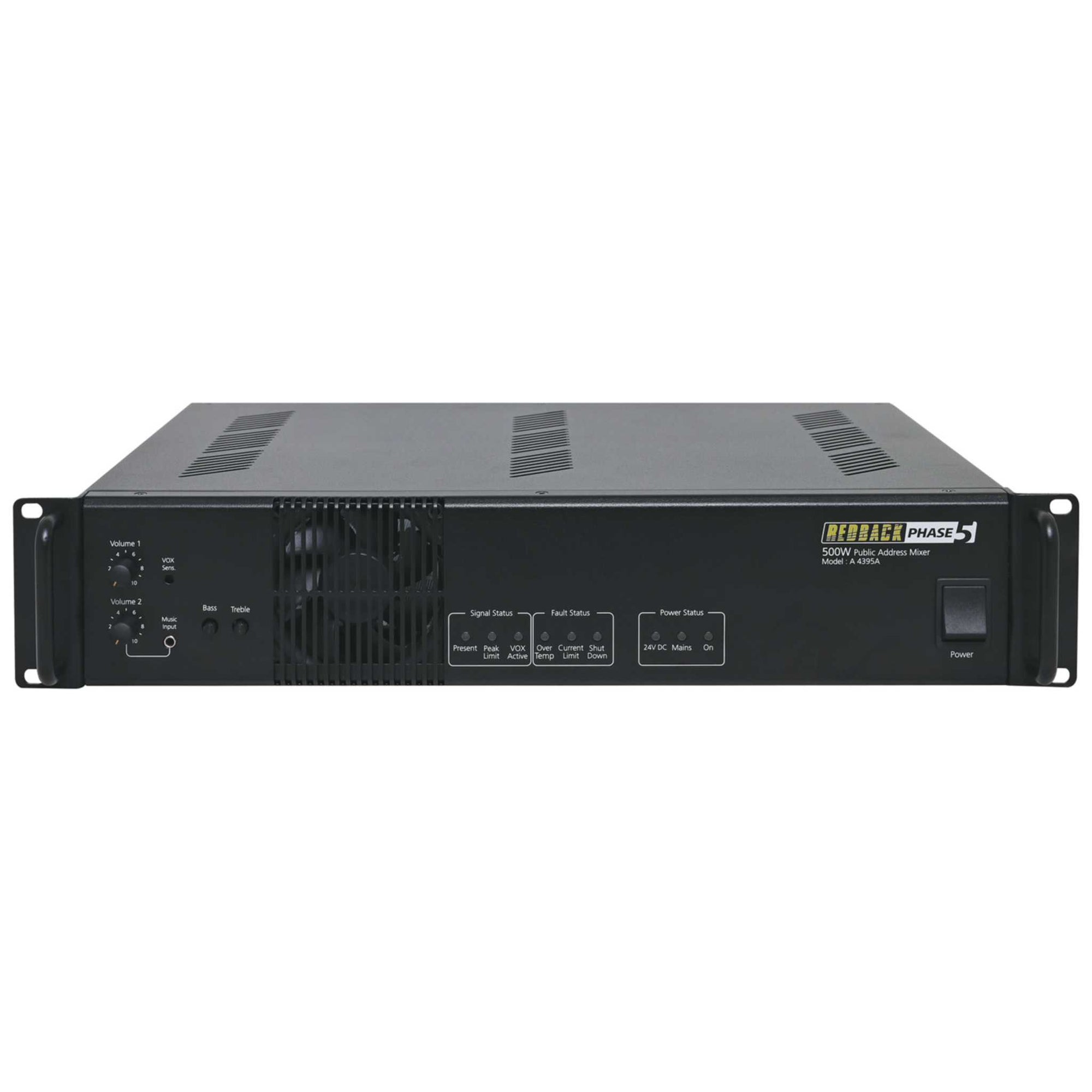

This amplifier features two audio inputs: input 1 offers a balanced XLR Mic input or dual RCA line input, while input 2 provides a dual RCA input. Additionally, there is a music input on the front panel for connecting portable devices. When connected, this front input overrides the rear input 2 audio source and can be adjusted using the volume 2 level control.

The VOX circuit, with a front panel sensitivity adjustment, allows input 1 to mute input 2. Phantom power (15 volts) is available at the 3-pin Mic XLR on input 1, and both RCA inputs 1 and 2 have adjustable input sensitivities. The amplifier also includes comprehensive protection circuitry, including overcurrent, overvoltage, and short circuit protection, ensuring reliable operation in any setting.

Features

• Robust design incorporating latest Mosfet technology
• Very Low noise and distortion
• 70V, 100V and 4-16Ω outputs
• 240V AC or 24V DC operation
• 24V DC @ 1 Amp output for external devices
• 300mA battery trickle charge
• Adjustable input level sensitivities
• Bass and Treble controls
• Phantom power on microphone input (XLR Input 1)
• Multi stage thermally cued fan cooling
• Output Peak Limited
• Thermal Overload protected
• Signal Presence Indicators
• Fault Indicators
• Power Status Indicators
• Rack Mountable (suits 19 inch racks)

Specifications

Power outputs

A 4395A:  500 watts RMS

Distortion:  < 0.5%, @ 1kHz

Output line:  70V, 100V or 4 - 16Ω

Frequency response

Mic input:  50Hz - 12kHz, -3dB

Line inputs:  50Hz - 15kHz, -3dB

Sensitivity

Mic input: 2mV

Line inputs: 100mV or 1V

Signal to noise ratio

Mic inputs:  > 75dB below rated output

Line inputs:  > 81dB below rated output

Output connectors

Speakers:  Screw terminals

Input connectors

Inputs:  3 pin XLR balanced or 2 x RCA

24V DC power:  Screw terminals

240V AC power: IEC power connector

Controls

Mic inputs:  Volume

Line inputs:  Volume

Bass:  ±10dB @ 100Hz

Treble:  ±10dB @ 10kHz

Power:  On/off switch

Indicators:  Power, signal present, output peak limiting, overtemp, current limit, shutdown, VOX active, 24V DC, Mains

Power Supply:  240V AC or 24V DC

Fuse protection

A 4395A:  10A AC , 20A DC

Dimensions

483W x 410D x 88H

*Specifications are subject to change without notice.
