Experience exceptional performance in a compact design with the Redback 15W PA Amplifier, ideal for smaller PA system applications. Engineered with a robust National TDA1519 monolithic IC, this amplifier ensures virtually “destruction-proof” operation, capable of withstanding severe misuse such as over-temperature, over-voltage, overload, and short-circuit speaker line conditions.

This amplifier remains extremely stable even when microphone (balanced line) and speaker cables are run together over long distances. It features an automatic shutdown when severely overloaded, resuming normal operation once the fault condition is removed. Versatile and adaptable, it can be used as a standalone desk/bench unit or rack-mounted with optional hardware. Up to two units can fit side by side in 1RU of rack space (44mm high). Its 12V DC operation (includes M8936 plug pack) makes it perfect for tour buses and mobile installations.

Features

• 15W RMS Output: Delivers powerful and clear sound.
• Headphone Socket: Convenient for private listening.
• Microphone Inputs: 1 balanced XLR and unbalanced jack mic input with selectable 12V DC phantom power.
• Auxiliary Input: Additional input for various audio sources.

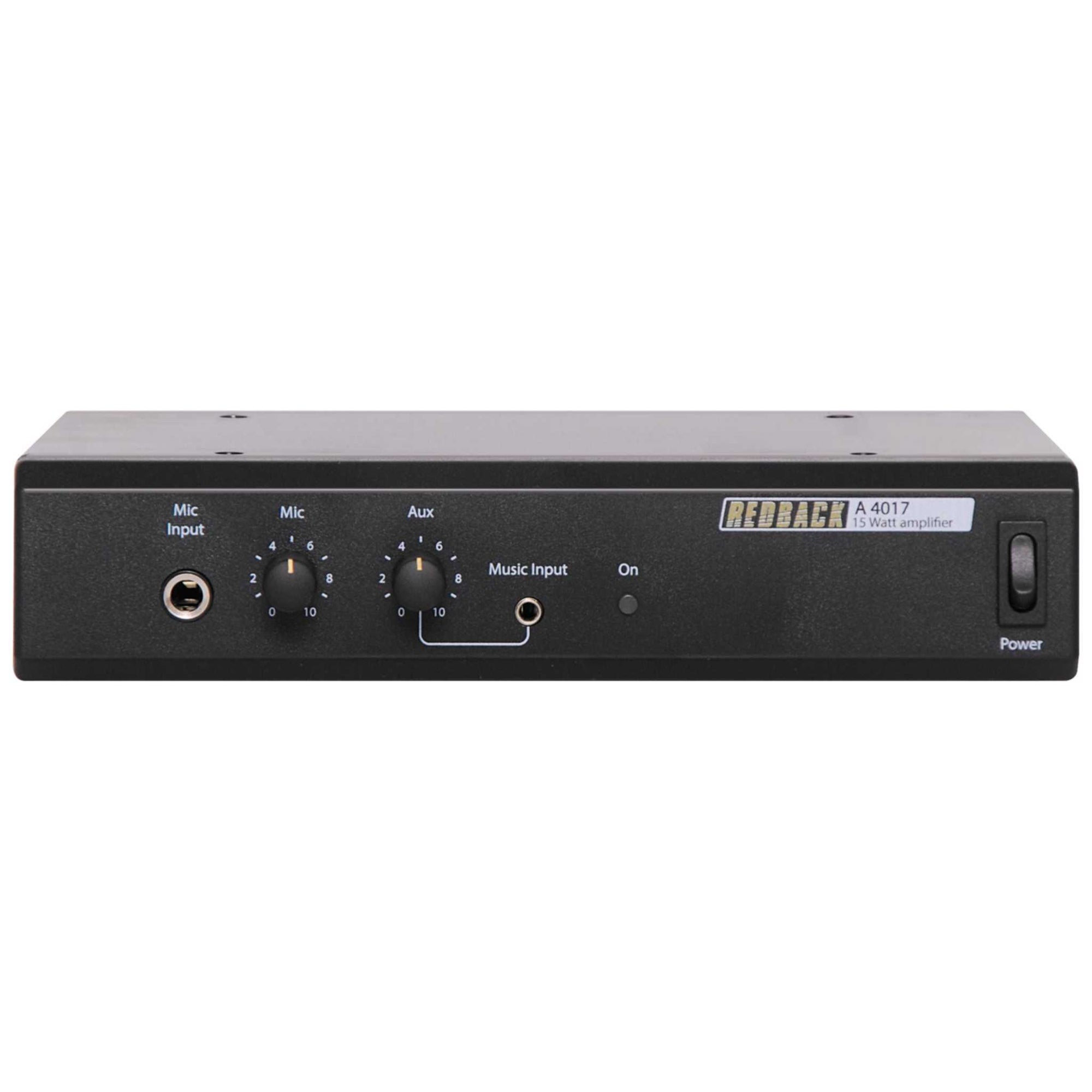

• Front Panel Music Input: Easy access for connecting music devices.
• Output Range: Supports 4-16Ω speakers.
• Selectable Aux Input Sensitivity: Adjust to match your audio source.
• 12V DC Operation: Includes M8936 power supply for flexible use.
• Power Status Indicator: Easily monitor the amplifier's status.

Enhance your audio setup with the Redback 15W PA Amplifier, designed for durability and reliable performance in a variety of environments.

Specifications

Power Output

• Power: 15 watts RMS
• Distortion: < 3% @ 1kHz
• Signal to Noise Ratio: Typically > 75dB

Frequency Response

• Mic input: 50Hz - 10kHz, -3dB
• Line input: 50Hz - 15kHz, -3dB

Input Sensitivity:

• Mic: Rear 1.5mV balanced, Front 1.5mV unbalanced
• Line input: 500mV

Output Connectors

• Speakers: Screw terminals
• Output impedance: 4-16Ω

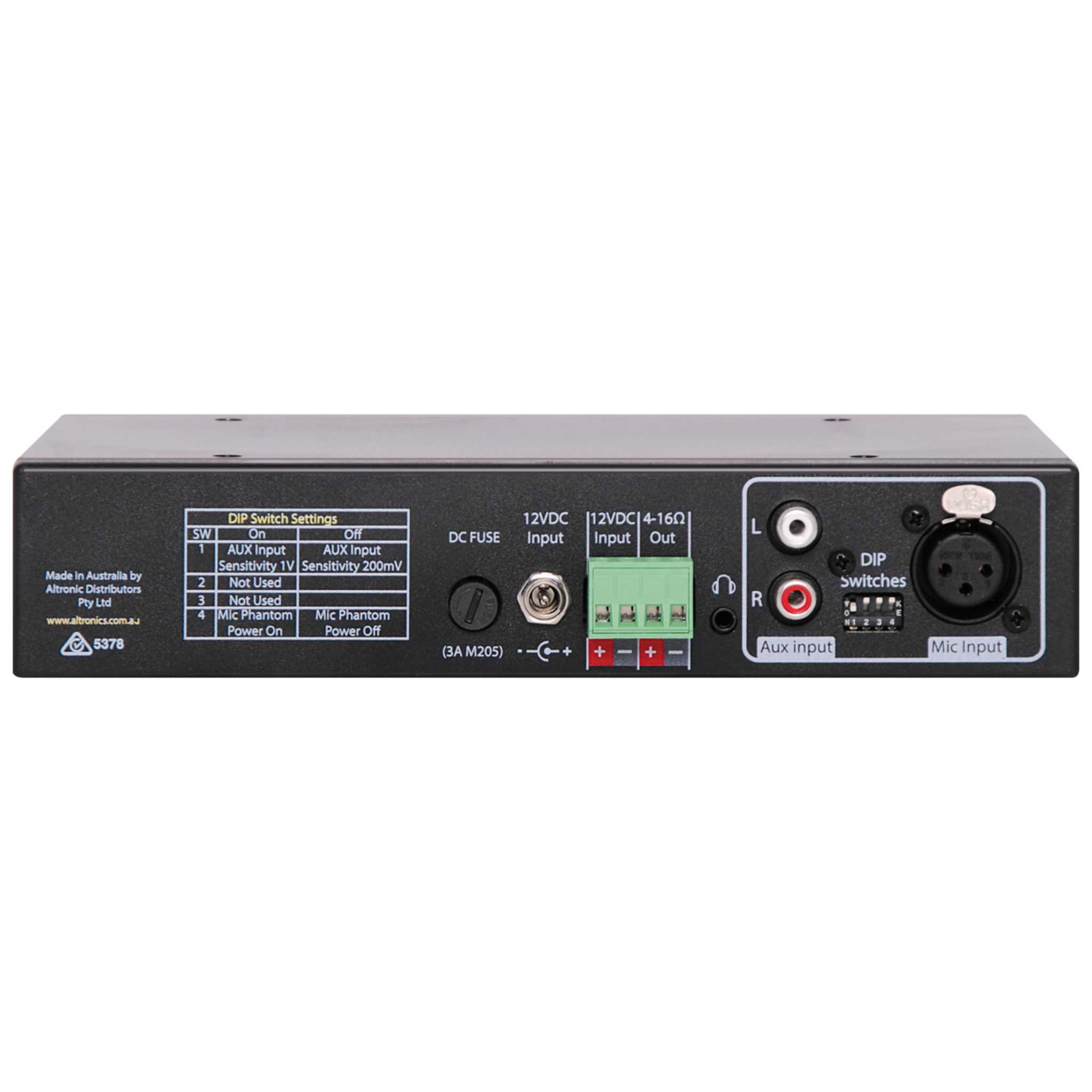

Input Connectors

• Mic : Rear 3 pin XLR balanced, Front 6.35mm jack unbalanced
• Line input: RCA stereo socket, bridged mono
• 12V DC power: 2.1mm socket

Controls

• Mic input: Volume
• Line input: Volume
• Power: On/off switch
• Indicators: Power
• Power supply: 12V DC
• Protection: 3A DC fuse
• Weight: 0.38kg
• Dimensions: 210W x 130D x 44H mm
• Colour: Black

*Specifications are subject to change without notice.
