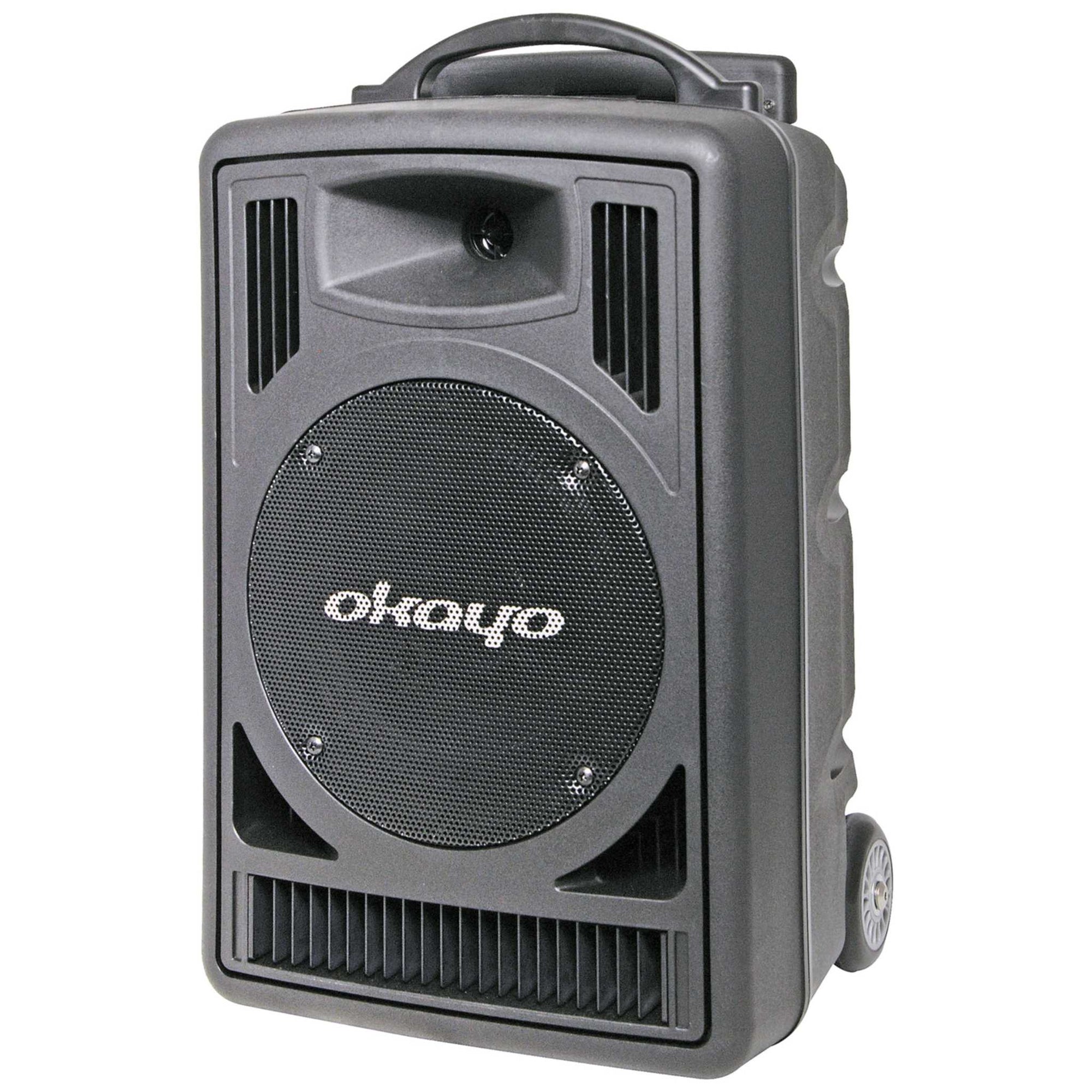

With a powerful 120W output, the Okayo® portable PA system is ideal for addressing large crowds of up to 500 or more. Perfect for marriage celebrants, schools, sports clubs, places of worship, shopping center presentations, and promotional events.

Designed for both speech and music applications, this all-rounder PA unit features two microphone inputs, one auxiliary input, and one line input, each with individual volume controls, plus bass and treble adjustments. It comes pre-fitted with a dual channel 520-544MHz wireless microphone receiver, compatible with handheld or beltpack wireless transmitters. The voice priority function mutes other sources when a microphone is used, ensuring clear voice transmission.

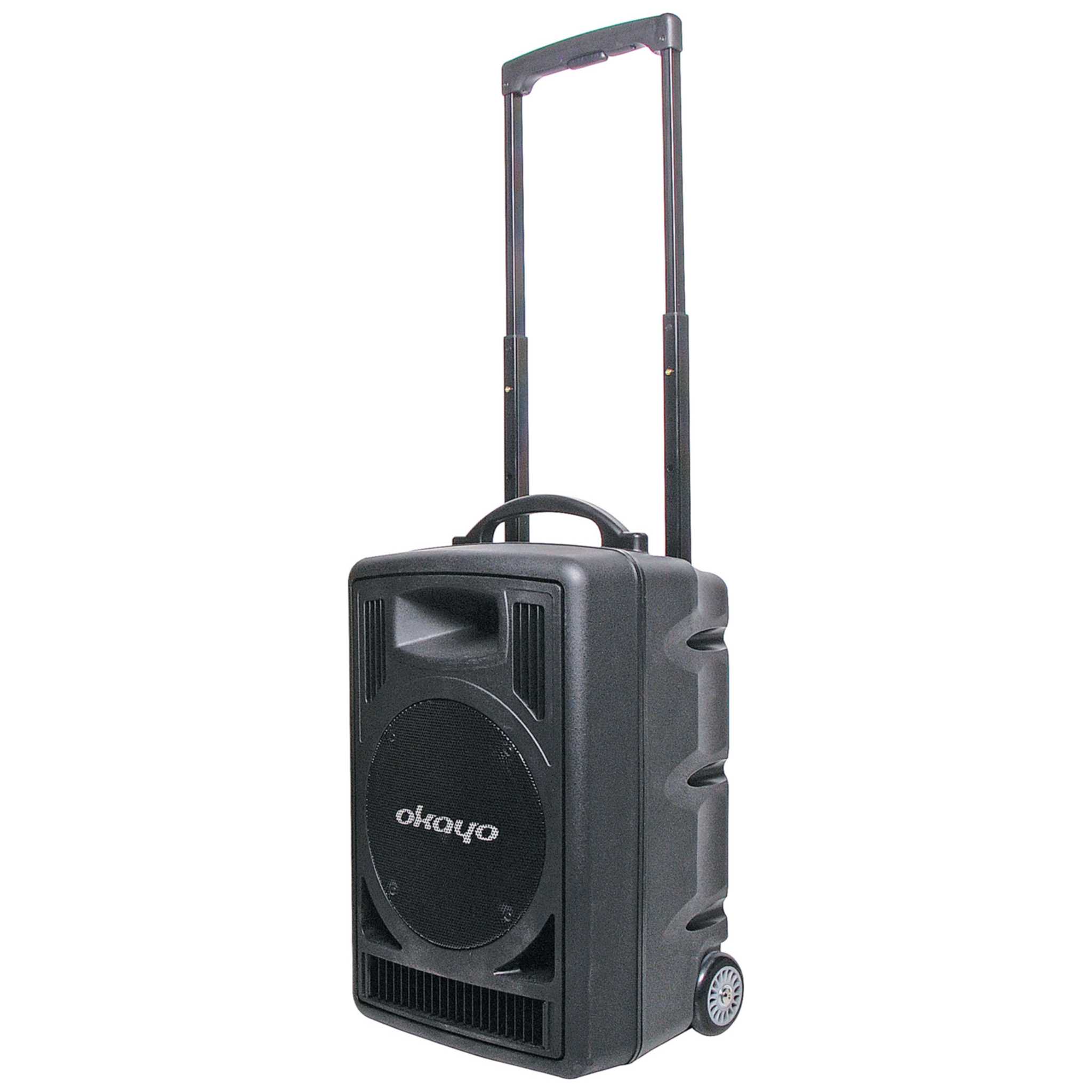

Constructed from industrial-grade ABS plastic, all Okayo portable PAs are built to withstand daily wear and tear. This model includes in-built “luggage” style trolley wheels and an extendable handle for easy transport, making it especially convenient for school campuses.

Streaming music is easy with Bluetooth functionality—just press the button, pair your device, and play content directly from your phone. The large capacity in-built battery and high-efficiency PA amplifier provide approximately 6 hours of use away from mains power (actual operation time varies). The battery level indicator helps you keep track of remaining power, and recharging is simple, requiring just 6-8 hours.

Mounting the PA is versatile, whether on an elevated surface like a stage or desk, or on a standard speaker stand using the 35mm recess in the base. Weighing only 20kg, the Okayo PA is highly portable, suitable for a wide range of uses in schools, places of worship, clubs, auctions, and more. Setup is quick and operation is user-friendly, even for school students.

Features

• Dual channel 96 frequency wireless UHF receiver (Can operate with up to 4 wireless microphones with the addition of a second C 7317C dual channel receiver).
• Bluetooth wireless audio streaming in-built
• Truly portable design
• Battery level indicator
• Compact design sets up in just seconds
• Rugged heavy duty ABS cabinet
• ‘Luggage’ type trolley wheels
• In-built extendible handle
• High performance 120W amplifier (80W RMS)
• Built in backup battery
• Provision for additional radio microphone receiver (520-544MHz)
• Suitable for desk or speaker stand mounting
• Optional wireless link for cable free transmission to additional systems
• RCA line input/output
• Two wired microphone inputs
• 240V AC mains or battery operation

Compatible UHF Transmitters:
C 7195C Wireless Belt Pack 96 Channel 520-544MHz
C 7192C Wireless Handheld Microphone 96 Channel 520-544MHz
C 7193C Wireless Handheld Condenser Microphone 96 Channel 520-544MHz

Specifications

• Output Power (RMS): 80W
• Output Power (Max): 120W
• Frequency Response: 20Hz to 20kHz
• Mid Bass Driver: 8" Woofer
• Tweeter: 1" Tweeter
• Operating Life: Up to 4-6 hours (fully charged - depends heavily on amount of use)
• Charge Time: 6-8 hours
• Battery: 2 x 12V 4.5Ah SLA
• Replacement Battery: 2 x 12V 4.5Ah SLA

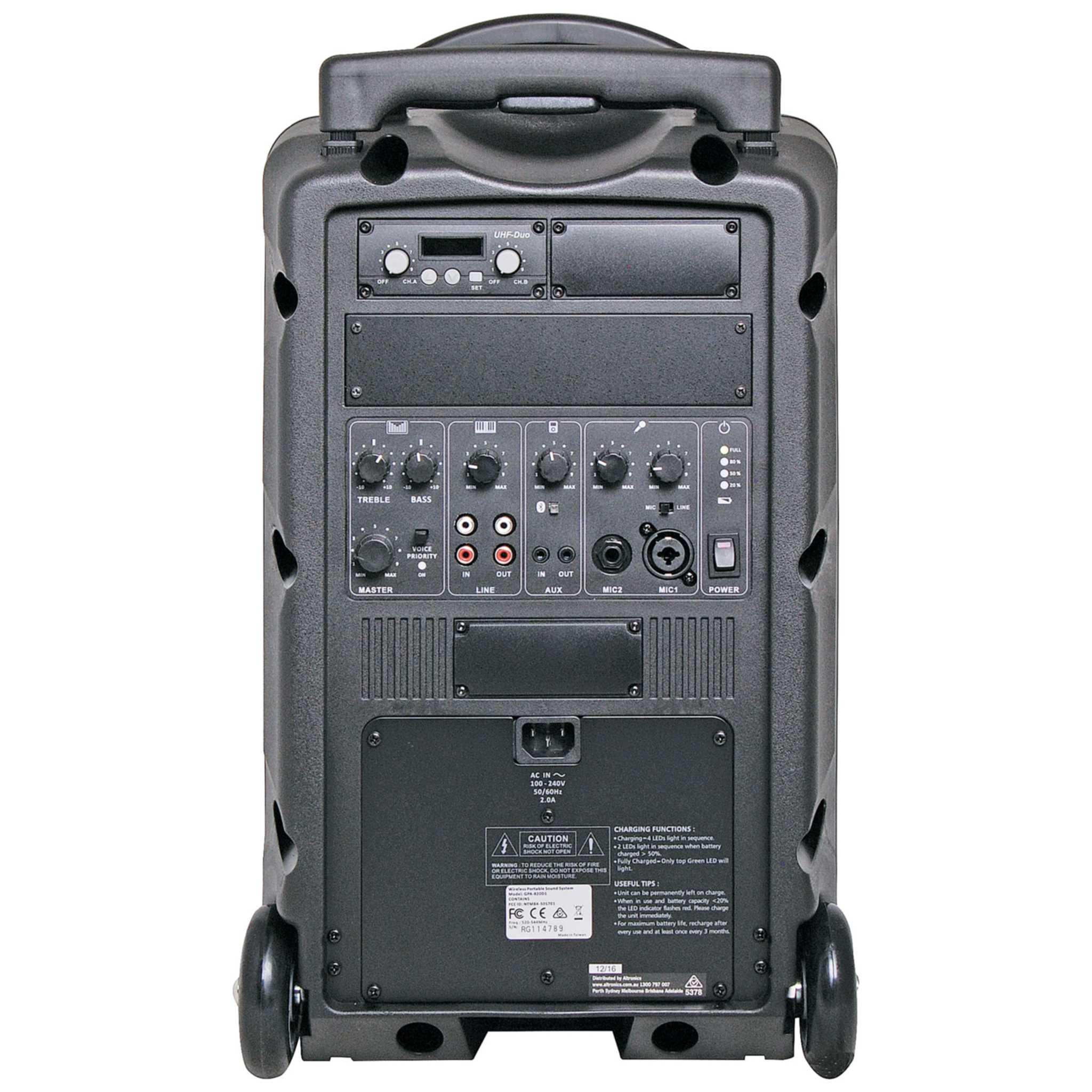

• Controls: Master volume, treble, bass, mic 1 volume, mic 2 volume, line volume, aux volume
• Inputs: XLR 3 pin, 6.35mm TRS, stereo RCA, 3.5mm stereo aux, Bluetooth streaming.
• Outputs: Stereo 3.5mm line out, stereo RCA line out
• Optional Modules: C 7317C UHF receiver, C 7203C Wireless link
• Expansion Slots: 3
• Dimensions: 264D x 301W x 511Hmm
• Weight: 16kg

*Specifications are subject to change without notice.
