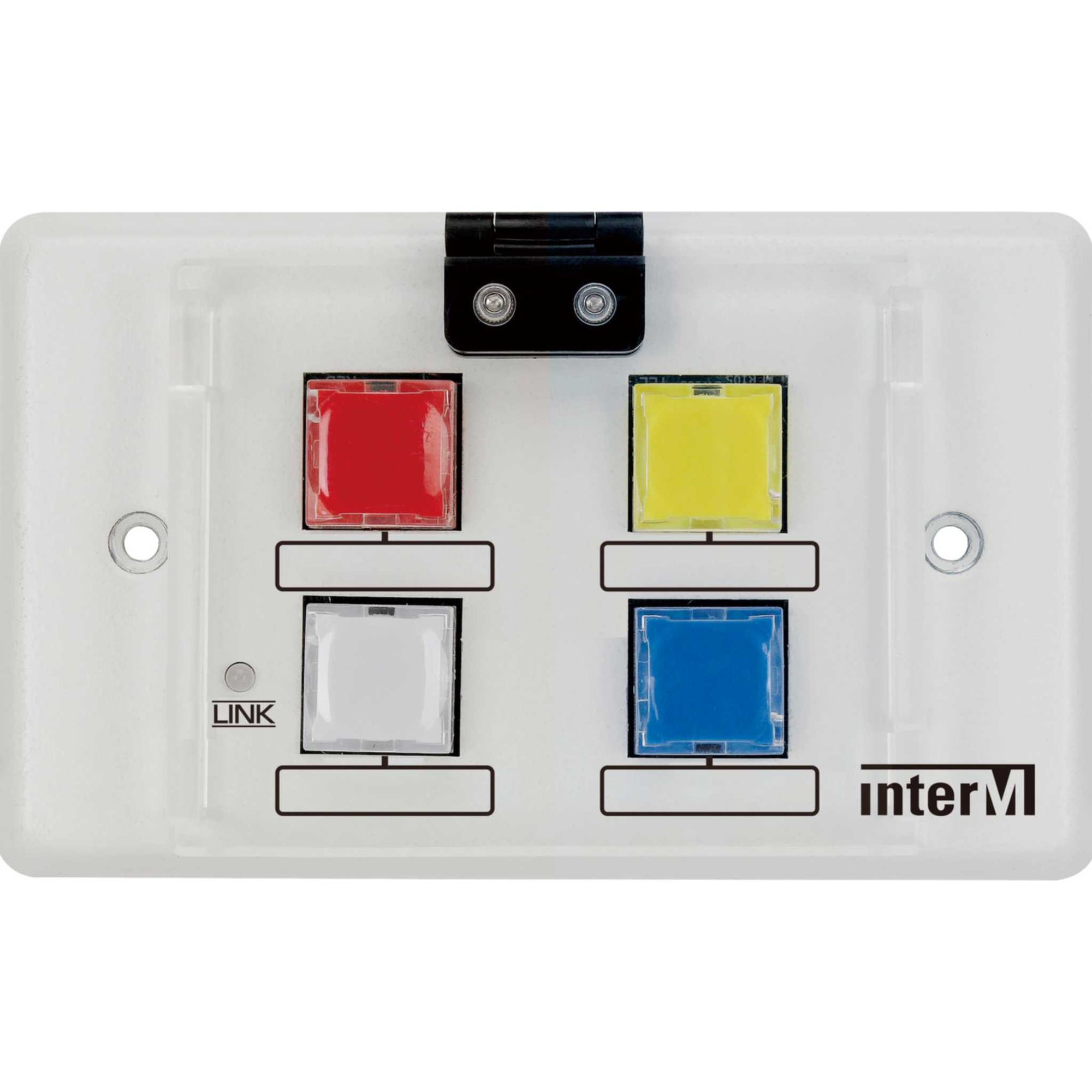

The LM-911 is a wall-mounted remote control designed to manage the first four audio sources of the ARM-911A from a remote location. It connects to the RM contact port of the ARM-911A and utilizes the RS-422 communication method. With four distinct buttons on its front panel, users can easily control these audio sources remotely, ensuring seamless synchronization with the ARM-911A.

Specifications

• Com Method : RS-422, 9600bps
• Com Distance: CAT.5e (100m/9.8Ω) 500m
• Temperature: -10˚C ~ +40˚C
• Operation Power: DC 24V
• Power Consumption: 0.32W
• Weight (Set): 123.3g / 0.27Ib
• Dimension (Set): 114(W) x 70(H) x 50(D)mm / 4.48(W) x 2.75(H) x 1.96(D)in

* Design and specifications are subject to change for the improvement of product quality without notice.
