inDESIGN 8 IP46 100V Installation Speaker (iD-BGM8)



Select color: White

The iD-BGM8 is a durable, weather-resistant, and UV-rated two-way structured plastic cabinet loudspeaker, ideal for both indoor and outdoor sound installations. Equipped with a high impedance transformer, it features an 8" woofer and a 1" (25mm) dome tweeter, delivering robust and clear audio performance.

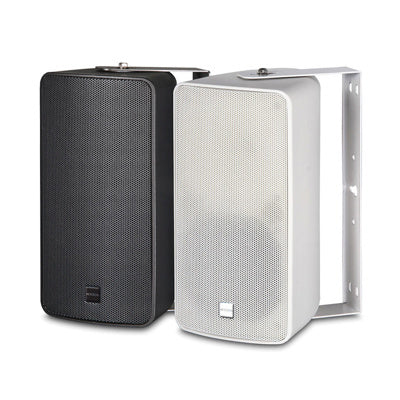

Available in black or white to match any setting.



  • Frequency Response (-3dB): 60Hz-18KHz
  • Drivers: 1x 8" (200mm) LF with 2" voice coil, 1x 1" (25mm) HF with 1" voice coil
  • Input Voltage: 100V
  • Power: 37.5W/75W/150W/OFF/16Ω
  • Sensitivity: 94dB (1 watt/1 meter)
  • Maximum SPL: 116dB continuous, 122dB peak
  • Impedance: 16 ohms nominal
  • Dispersion (-6dB): 90°H x 50°V
  • Crossover Frequency: 2.3kHz passive
  • IP Rating: IP46 (Applicable Standards - EN 60529: 1991 + A1: 2000 + A2: 2013)
  • Dimensions: 241mm (W) x 285mm (D) x 450mm (H)
  • Weight: 10.7kg
  • Mounting: U-bracket mount included


Sold individually, the iD-BGM8 speaker is a reliable and high-performance choice for various audio installation needs, offering exceptional sound quality and easy installation.
